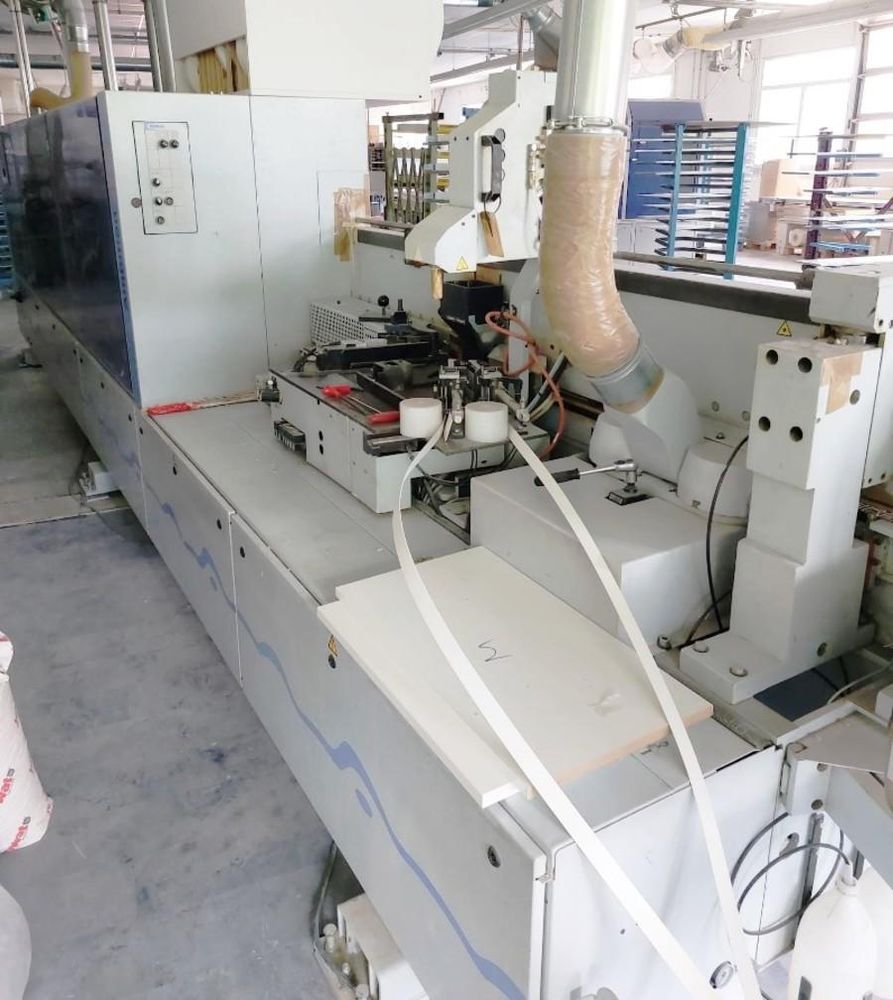

Homag OPTIMAT KAL 210/7/A20/V2

Single-sided edge banding machine for processing straight workpiece edges and for gluing and reworking various edge materials in longitudinal and transverse throughfeed
Workpiece width min. 60 mm
Workpiece protrusion 30 mm
Workpiece thickness 12 - 40 mm
Edge thickness 0.3 - 3 mm
Strip edge 0.4 - 20 mm
Feed rate 18 - 25 m/min
Transport chain with rubber pad, 80 mm wide
Magnetically braked transport chain
Automation package chamfer/radius KAL 210/6/A20

Aggregates:
- Release agent spray unit top/bottom
- Joint trimming unit, for sizing the workpieces before gluing, 2 x 3 kW, 9000 rpm, electro-pneumatic control of both motors, workpiece blow-off device
- A20 gluing unit, with preheating
- QUICKMELT hot melt gluing unit
- Magazine 2 rolls automatic, for solid edges, strips and rolls, manual magazine height adjustment via spindle +/- 5 mm
- Print zone C
- Trimming unit HL84, for trimming the edge protrusions
- Pre-milling unit, for pre-milling the PVC edges and flush-milling the solid edges
- Shaping trimming unit FK 13, automatic
- Multi finishing unit MN 20, manual
- Finishing unit
- Finishing unit glue joint
- Buffing unit

Power Control PC22, based on Windows PC
TFT flat screen 19" with touchscreen
Software package woodCommander
