Homag OPTIMAT KAL 210

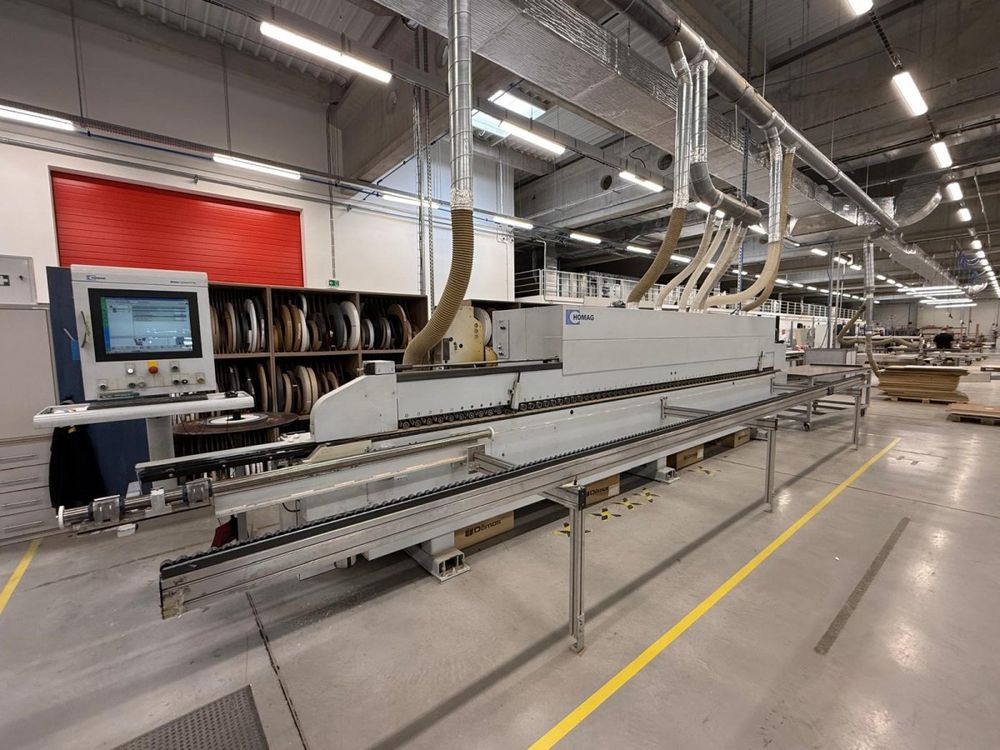

The OPTIMAT KAL 210/6/A3/S2 banding machine from the Optimat series is a single-sided machine designed for banding
and subsequent processing of edges of furniture parts by fixed configuration of aggregates.

Control Panel
Pre-milling aggregate
A3 banding unit with roller application, for EVA granule adhesives
Pressure unit with pressure rollers that ensure a firm and even sticking of the edge to the part.
A drip unit with two hooded chainsaws for precise cutting of the edge overlaps.
Milling unit for overhanging from the top and bottom of the part by radius or bevel.
Rotating unit for rounding corners.
Profile and surface cidlines
Polishing unit with two polishing discs that polish the edge and remove the adhesive residue from the cidlines

TECHNICAL PARAMETERS OF THE MACHINE:
Feed speed: 18 - 25 m/min.
Part thickness: 12 - 40 mm
Edge thickness: 0.3 - 3 mm (roll make-up)
Edge thickness: 0.4 - 20 mm (trimming of solid wood)
Minimum width of the part: 60 mm (at a thickness of 22 mm); 105 mm (at a thickness of 40 mm)
Working height: 950 mm

DIMENSIONS AND WEIGHT OF THE MACHINE:
Dimensions (L×W×H): 830×130×180 cm (width including pull-out arm 210 cm
