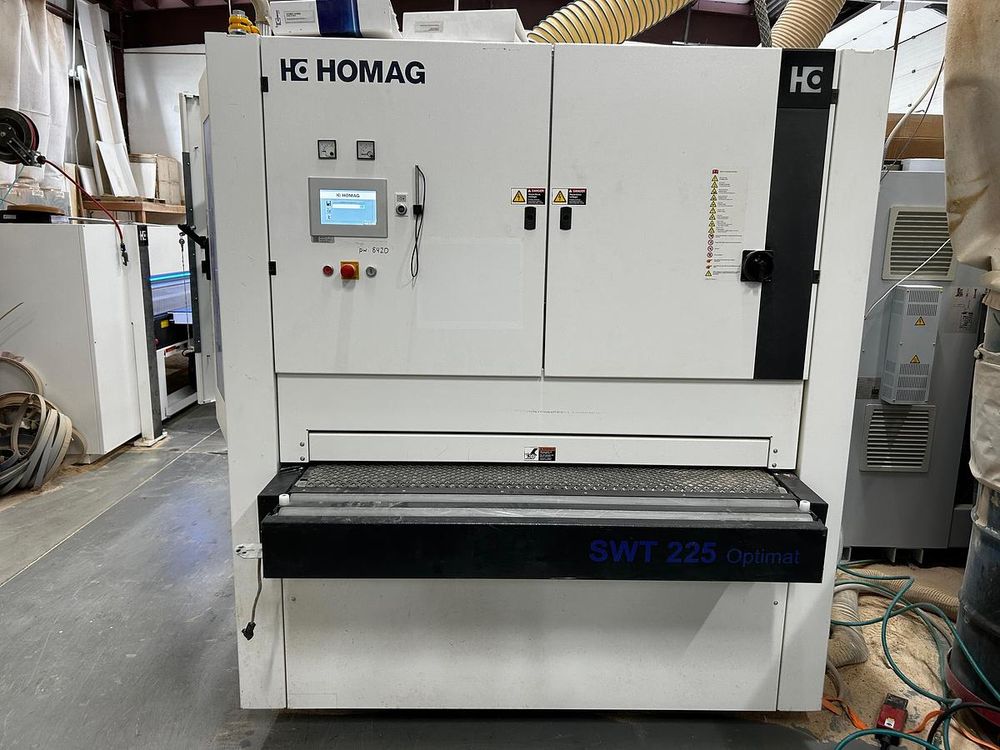

Homag SWT225 RC

Wide belt sander
Max working width: 53"
Max working thickness: 8"
Upper machine frame adjusted by (4) four large diameter columns
Fixed table, constant passline design allows for use of transfer conveyors in and out of the sander
Abrasive belt size: 54" x 85"
Automatic thickness set up
Automatic grit set for drum position
7" LCD Touch screen controls for machine operation and setting up programs (125 programs)
Automatic star-delta starting
Electric eye abrasive belt tracking
Lexan side doors
Rubberized pressure rollers
Inverter controlled feed speed from 10-49 ft/min
Head 1: 6" diameter steel roller with auto positioning; drive motor: 29HP
Head 2: Combination rubber drum with electro - pneumatic segmented platen (25mm segments)
Abrasive belt speed variable from 6.5-59 fps; 23HP
Air jet blower on head 2
Cleaning brush
Voltage 460v - 99 amps
Compressed air- 15 cfm at 90 psi
Total dust cfm: 3260 cfm Head 1: 7" port, Head 2: 7" port, Panel cleaning brush: 5.5" port, vacuum table fan: 4"
