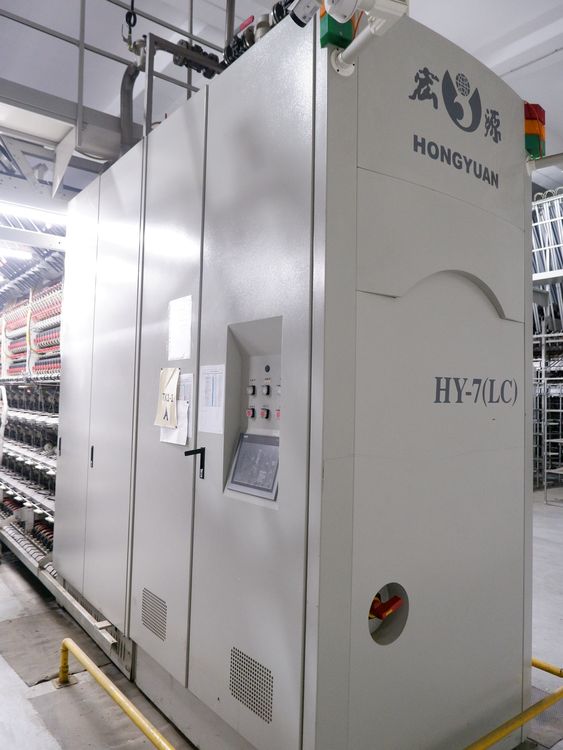

Hongyuan HY-7(LC)
MIDDLE EAST
HIGH-SPEED DRAWING MACHINE – TECHNICAL SUMMARY
Model: HY-7 (LC) – V Type
Manufacturer: Wuxi Hongyuan (China)
Year / Condition: 2021 – New
CE / Warranty: CE Certified – 12 Months Warranty
- Configuration & Capacity
▪ 288” – 12 sections
▪ Double heater (Double Heater)
▪ Yarn types: Polyester DTY / Polyester+Spandex / Polyester+FDY
▪ Yarn range: 55–220 dtex (low speed 330 dtex)
- Speed & Technical Specifications
▪ Maximum speed (W2): 1,100 m/min
▪ Winding speed: 1,200 m/min
▪ Draw ratio (W2/W1): 1,000–4,000
▪ Cross angles: 17°–40°

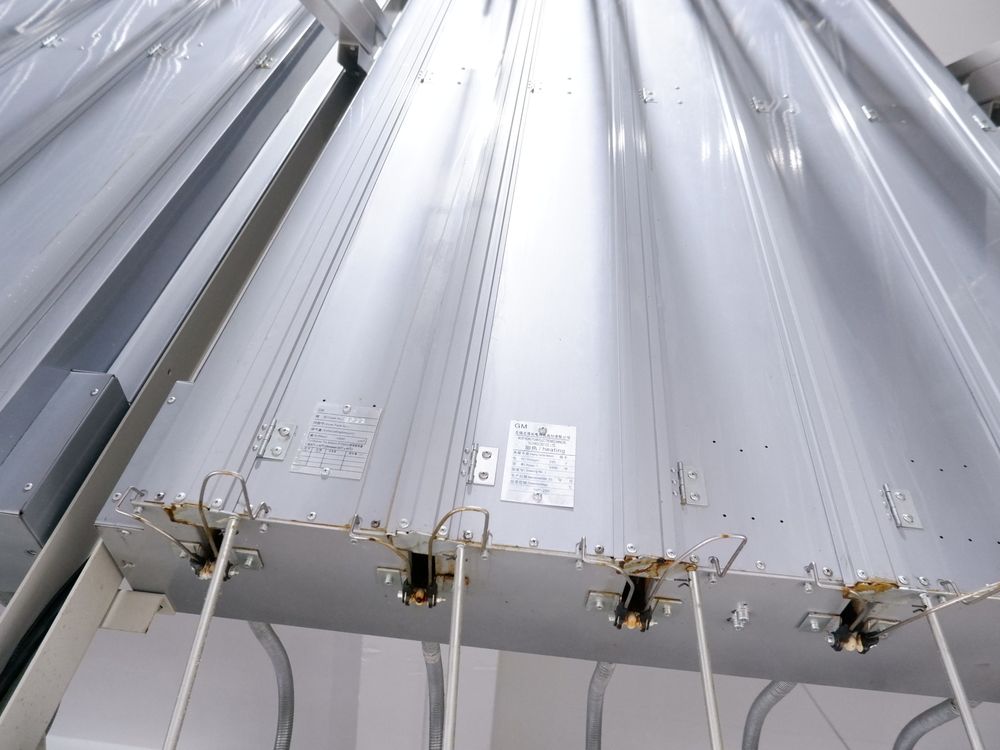

- Heating System
▪ Primary heater: 150–250°C (2.0 m)
▪ Secondary heater: 150–250°C (1.46 m)
▪ Digital temperature control & automatic monitoring

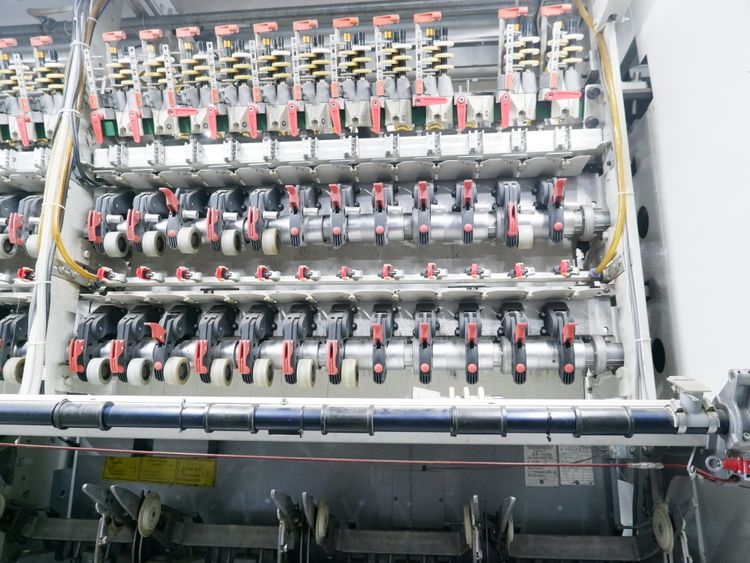

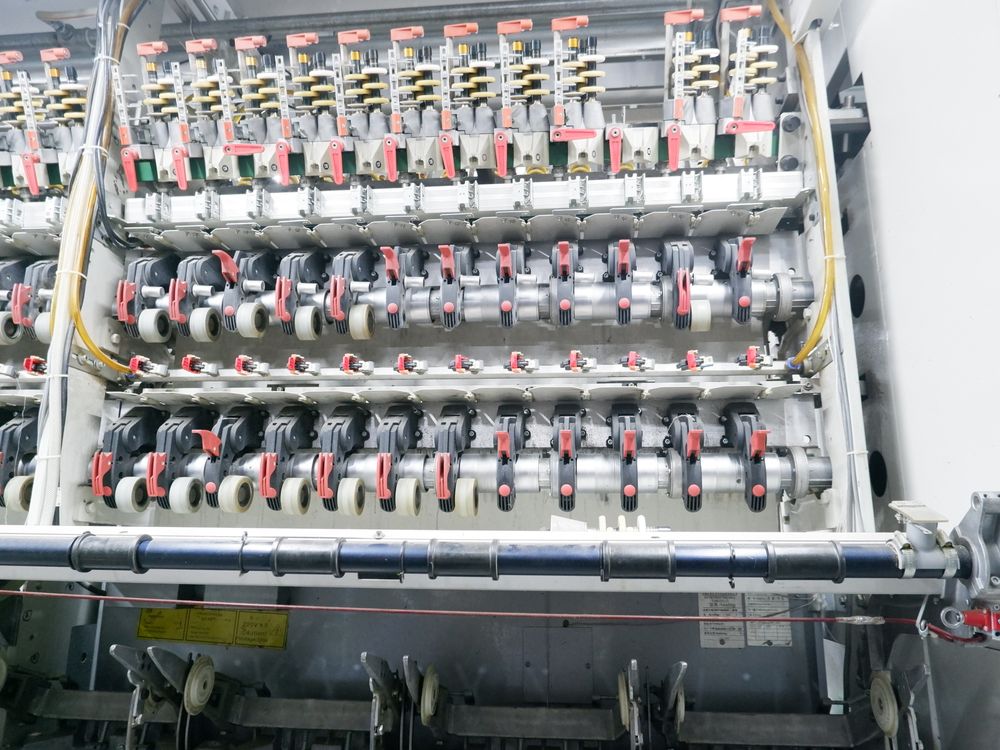

- Friction & Yarn Control
▪ Friction system with ceramic + PU disc
▪ Non-contact yarn sensors
▪ Waste yarn suction and collection system
▪ Automatic yarn cutting in case of power failures
- Winding (Rewinding)
▪ Maximum package diameter: 250 mm
▪ Conical angles: 65° / 70° / 75° / 80° / 85°
▪ Strip breaking and unraveling system available
- Automation
▪ SIEMENS PLC + touch panel
▪ Online tensioning system (tension, CV, (Accumulation monitoring)
▪ Remote access & technical support available
- Dimensions
▪ 22,582 × 10,164 × 5,600 mm (including creek)
▪ Double fixed creek – Ø 435 mm
- Energy & Installation
▪ 380V – 50Hz – 3 Phase
▪ Compressed air: 0.6 MPa
