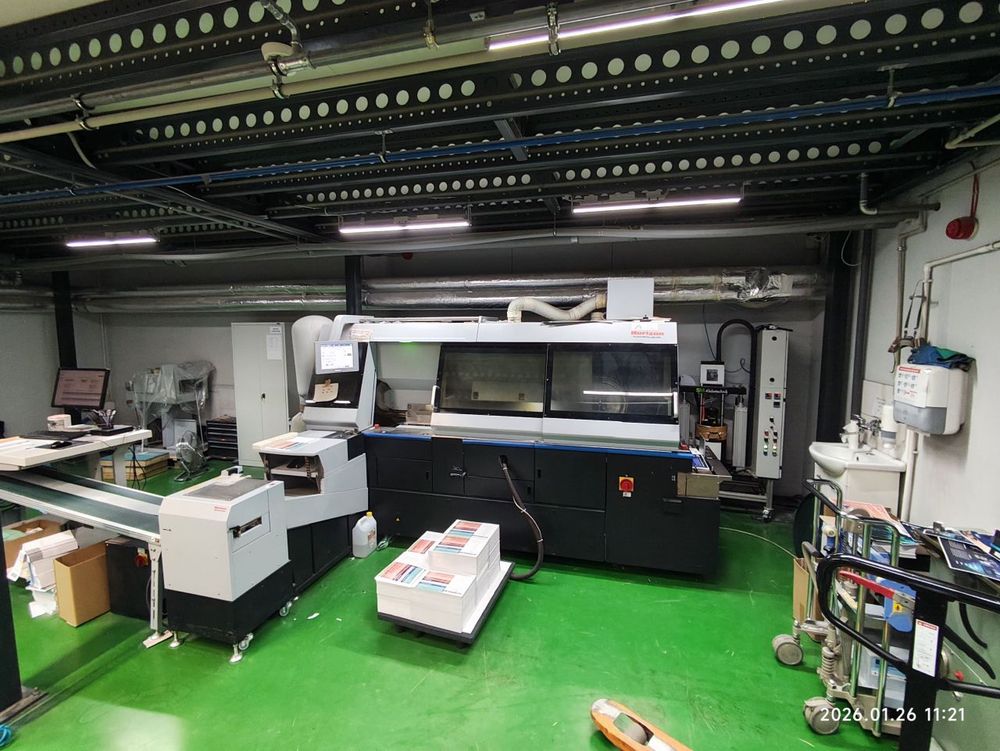

Horizon BQ 480
EUROPE (Western and Northern)
FOUR-JAW BINDING MACHINE
GLUING SYSTEM: HOT EVA GLUE (REPLACEABLE GLUE APPLICATOR TECHNOLOGY).
COVER FEEDING METHOD: SUCTION DRUM ENSURING SMOOTH AND TROUBLE-FREE OPERATION.
TOUCH - WORK SYSTEM: FULLY AUTOMATIC MACHINE CONTROL VIA A COLOR TOUCHSCREEN PANEL.
CONTROL SYSTEM: SI 470A INSERT THICKNESS SCANNER AS STANDARD.
POWER SUPPLY: 3 X 400 V.
PRODUCTIVITY AND OPERATING RESOLUTION
CATALOG CAPACITY: UP TO 1,350 CYCLES/H (EVA TECHNOLOGY).
PRACTICAL CAPACITY: UP TO 800 BOOKS/H.
SETUP TIME: VERY SHORT THANKS TO FULL AUTOMATION OF 19 EQUIPMENT COMPONENTS.
JOB MEMORY: CAPABILITY TO STORE UP TO 999 JOBS IN THE MACHINES MEMORY.
PAPER PARAMETERS (INNER AND COVER)
BINDING FORMAT (MIN): 145 X 105 MM.
BINDING FORMAT (MAX): 320 X 320 MM.
BINDING THICKNESS: FROM 1 TO 65 MM.
COVER FORMAT (MIN): 135 X 225 MM.
COVER FORMAT (MAX): 320 X 670 MM.
COVER WEIGHT: 81.4 TO 302.4 GSM (UP TO 348.9 GSM FOR COATED PAPERS).
CREASING: AUTOMATICALLY ADJUSTABLE CREASING UNIT (4 OR 6 CREASES).
PHYSICAL SPECIFICATIONS AND EQUIPMENT
DIMENSIONS (W X D X H): 3650 X 2340 X 1850 MM.
WEIGHT: 2,300 KG.
MILLING: HIGH-SPEED MILLING AND SCORING UNIT (DEPTH UP TO 4 MM).
STACKER: EQUIPPED WITH A LIFT TO PROTECT BOOKS FROM DAMAGE.
ACCESSORIES: GLUE FUME EXTRACTOR, DUST EXTRACTOR AFTER MILLING, WEEKLY TIMER, LED STATUS LAMP.
