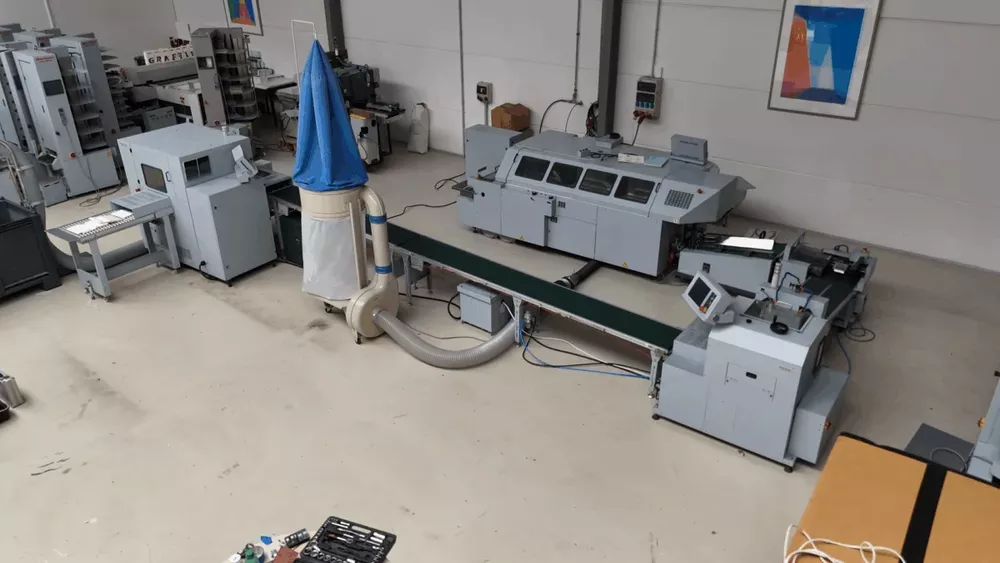

Horizon SB-07+HT-80

Counter: 3 600 000
Condition: Cleaned/Adjusted/Perfect condition

SPECIFICATIONS OF SB-07:
Number of Clamps 7
Book size :
Max. 400(W) x 320(H) mm (15.74″ x 12.59″) (B4 wide)
Min. 135(W) x 105(H) mm (5.32″ x 4.14″) (A6)
Book Thickness 2 to 45 mm (0.08″ to 1.77″)
Cover Size (Top-Bottom x Fore-edge) :
Max. 380 x 660 mm (14.96″ x 25.98″)
Min. 135 x 220 mm (5.32″ x 8.67″)
Cover Weight Range :
82 to 302 gsm Normal Paper
105 to 348 gsm Coated Paper
Cover Pile Height : Max. 150 mm (5.90″)
Production Speed Max. 3,200 books/hr.

SPECIFICATIONS OF HT-80:
Untrimmed Book Size :
Spine Length x Fore-edge Length Max. 330 x 330 mm or 13” x 13”
350 x 330 mm or 13.78” x 13”
(When Using the Optional C-80L)
Min. 145 x 105 mm or 5.71” x 4.135”
Book size :
Max. 400(W) x 320(H) mm (15.74″ x 12.59″) (B4 wide)
Min. 135(W) x 105(H) mm (5.32″ x 4.14″) (A6)
Finished Book Size Spine Length x Fore-edge Length
Max. 300 x 300 mm or 11.81” x 11.81”
340 x 300 mm or 13.385” x 11.81”
(When Using the Optional C-80L)
Min. 139 x 99 mm or 5.475” x 3.9”
Cover Size (Top-Bottom x Fore-edge):
Max. 380 x 660 mm (14.96″ x 25.98″)
Min. 135 x 220 mm (5.32″ x 8.67″)
Cover Weight Range :
82 to 302 gsm Normal Paper
105 to 348 gsm Coated Paper
Trim Width :
Top and bottom: Max. 30 mm or 1.18” each
Fore-edge: Max. 30 mm or 1.18”
Trim Height 1 to 51 mm or 0.04″ to 2″
Clamp System and Pressure :
Servo Motor
4 kN to 8 kN (10 kN depending on Condition)
Production Speed 400 to 1,000 cycles per hour
