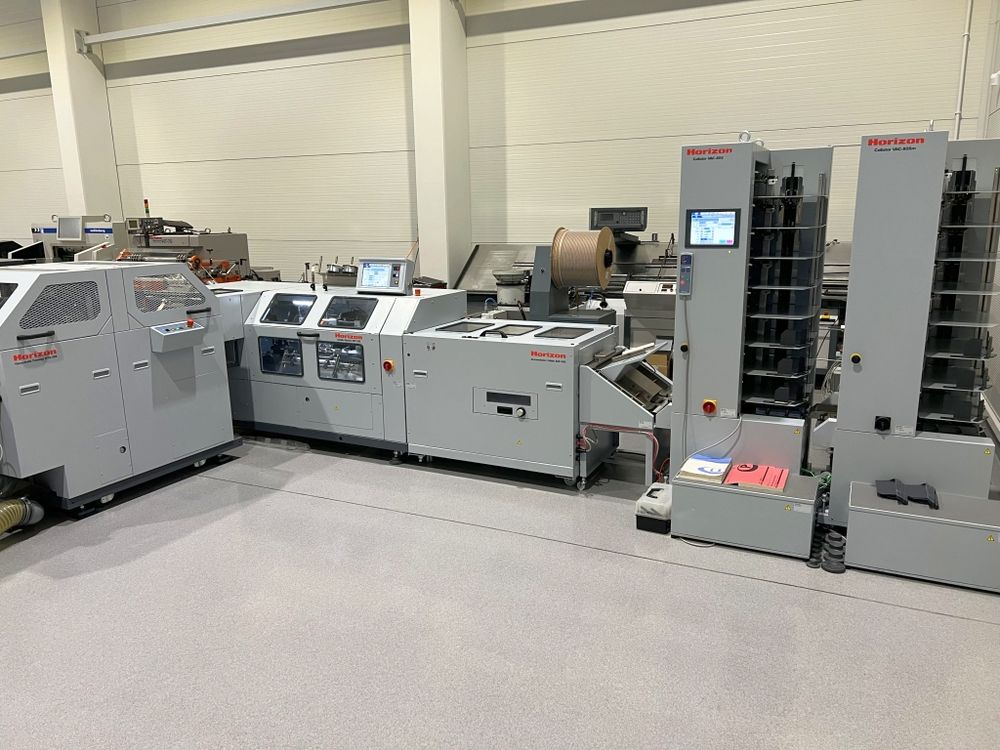

Horizon Stitchliner 6000

Booklet Maker
This machine is in very good condition, with low mileage, and was manufactured in 2014.

Description:
This machine boasts a robust, compact, and professionally built design.
It is characterized by high efficiency and binding quality.
Maximum throughput is 6,000 cycles per hour, and with a die-cut option, 12,000 cycles per hour can be achieved.
The StitchLiner is set up fully automatically using a touch panel.
The machine can sew booklets of up to 200 pages at a paper weight of approximately 60 gsm.

Machine equipment:
– 2 Horizon VAC-80 Sa + Sm collating towers
– Horizon SPF-30S saddle stitcher
– Horizon ACF-30S folding module
– Horizon HTS-30S three-knife trimmer
– Delivery, waste extraction system, 2 Hohner heads, compressors, additional components, accessories, documentation

Technical specifications:
Maximum format: 350 x 500 mm
Minimum format: 140 x 200 mm
Paper weight: 53 to 210 g
Maximum booklet thickness: 5.2 mm plano
Staple spacing: 60 to 150 mm
Three-knife trimmer cutting thickness range: 2 to 25 mm
Production capacity: up to 6,000 booklets/h
Wire thickness: 0.5-0.7 mm
