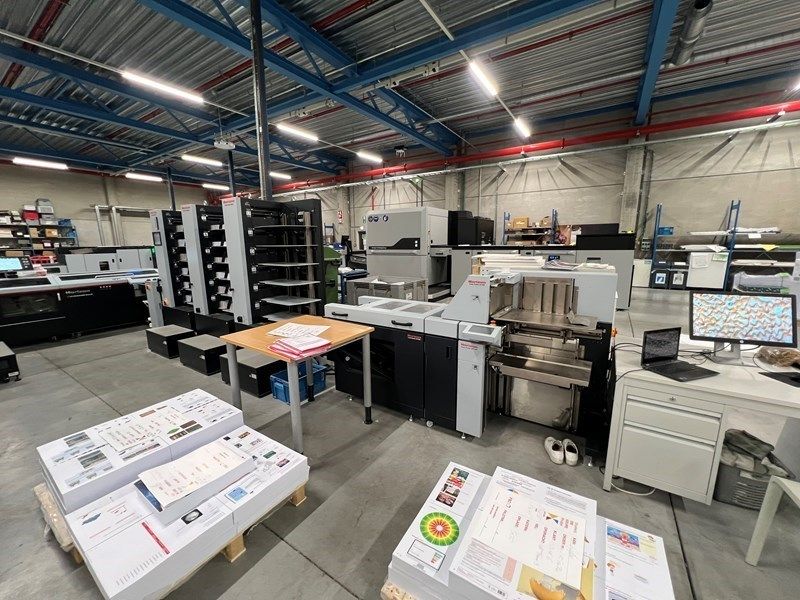

Horizon STITCHLINER MARK IV Saddle stitcher

Max. size untrimmed (man.fed): Hochformat 356 x 508 mm
Mech. speed: 6.000 cycles/h
Power supply: 400V+230V
Stock: 52 - 350 grm²

Latest generation, fully automatic setting Sheet Collating and Saddle Stitched Booklet System.
Features:
Simple, fast set-ups by non-specialist finishing operators
Works from flat-sheet 4-page sections
No need to pre-fold
Integrated automatic set-up 3-knife trimmer
High quality books with sharp spine definition
Automatic error detection and ejection for faulty stitching
Single sheet tracking, 4 side jogging, variable trimming and stitch lengths
7" colour touchscreen, ‘iCE’ cloud connectivity for remote access and monitoring

Comprising:
iCE operator interface
HOF400 high pile feeder
CF400 cover feeder
AC400 accumulator
HIF400 connecter
3 x towers VAC-L600Ha, VAC-L600Hm, VAC-L600Hm
3 x ESB-L600 Extra air blower
ST-40 + ST-CV/LG bypass stacker
ACF-50 accumulator folder
SPF-50 stitcher
SL6PS-40 6 page cover kit
2 x Omega heads 52-8S 6mm barrel
HTS-50 three knife trimmer
TB-30 chutes blower
HTS-TD40 Thickness detector
PK-30 preset kicker
HTS-ECV40 delivery conveyor
