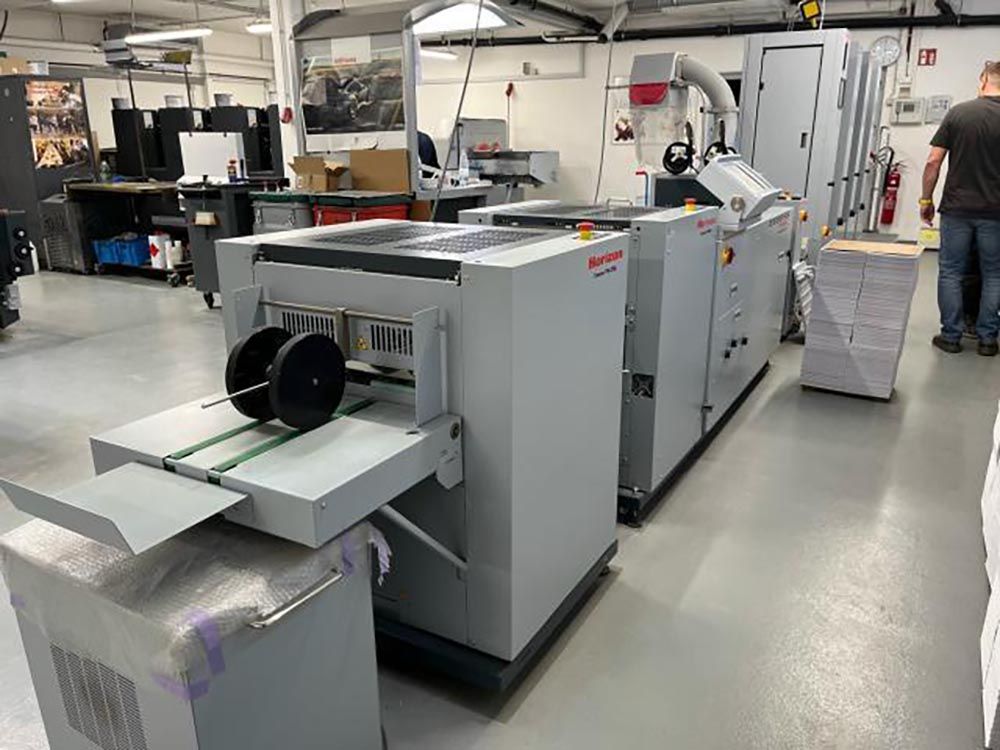

Horizon VAC-1000

Max. signature size: 350x500 mm
Min. signature size: 120x148 mm
No. of stations: 10
Max. block thickness: 55 mm
Stock weight: 40 to 260 grm²
Collating speed: up to 9500 /h.
Machine dimensions: 810x945x1961 mm
Weight: 290 kg

+ ST-40 bypass stacker for formats 182x128 mm to 350x500 mm
max. stack height: 360 mm, for paper from 52 to 208 g/m2
max. 6 mm thickness at output
Dimensions: 135x65x103 - weight: 139 kg
+ ST-CV horizontal conveyor (14 kg)
+ high-performance automated in-line stitching system with SPF-200A saddle stitcher-folder for saddle stitching and folding with 2 Höhner 43/6S heads
electrical safety against thread shortage) color touch screen, for weights of 64-157 gr in plain paper or 85 to 157 gr in coated paper
brochure format: from 120x90 mm (120x85 mm with trimming) to 356x254 mm (356x250 mm with trimming), folding thickness up to 2 mm
adjustable stitching distance from 73 to 290 mm, detection of jams, wire feed and jogging errors, totalizer counter, batch counter
Dimensions: 277x81x125 cm - weight: 454 kg
+ FC-200A guillotine with receptacle of external trimming, jam detection, full trimming bin,
Full disposal bin, counter, defective brochure discharge for brochure formats from 120x90 mm
to 356x254 mm (before trimming) and 120x85 mm to 356x250 mm (after trimming)
Max. trimming width: 20 mm
Max. cutting thickness: 4 mm, dimensions: 134x81x107 cm - weight: 244 kg
counter: 2.100.000 Cuts with conveyor (short output) SC-200
+ TBC-200L -TRIMMER
+ TB-200
