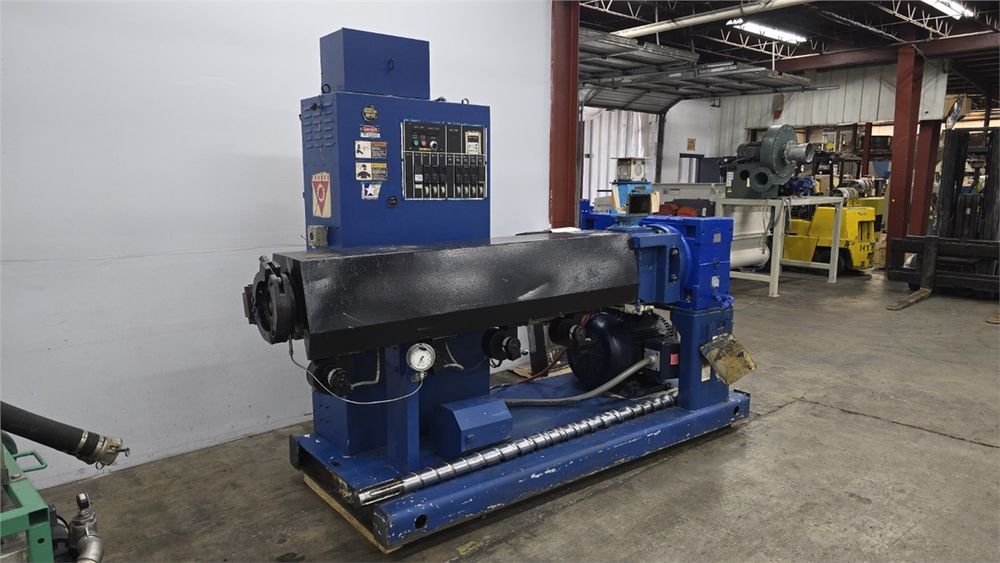

HPM 3.5TMC-24

3.5" HPM Single Screw Extruder, Model 3.5TMC-24,
24:1 L/D, Air Cooled, 75hp, New in 1994
75hp Marathon Blue Max AC Motor
1780 RPM
221 (FT/LBS) Torque
460/3/60, 92 FLA
Flender Gearbox Type SZNE 250, S/N: D22-306-511-4-5
Ratio: 13.881:1
Driver:1838 RPM, Driven: 60 RPM
With Screw & Clamp
Newport Digital AMP & Screw Speed Readouts, Teco Westinghouse Head Pressure Controller, Barber-Coleman Temp Controllers,
Dynsico Pressure Transducer Gauge, Model PG442R-10M-6/30,
0-10,000psig Range
150A Mag-Gard Main Disconnect
Serial Number: 93075
Barrel Is In Great Condition - Screw Is Worn - SEE MEASUREMENTS
DRIVE NOT INCLUDED
