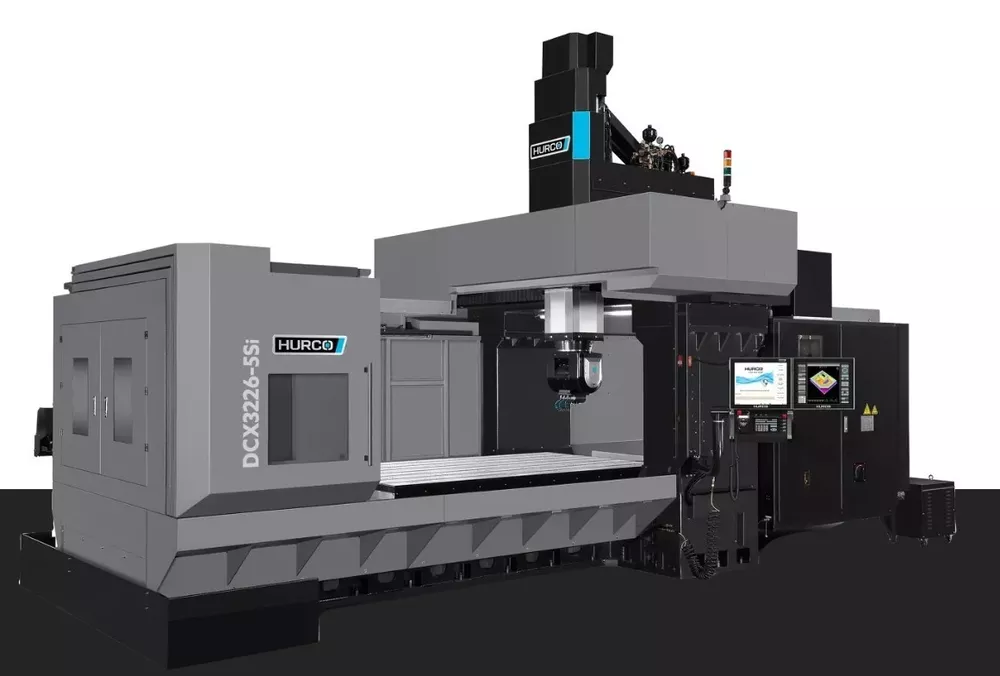

Hurco DCX 32-5 Si 5 Axis

X-axis travel 3200 mm
Y-axis travel 2100 mm
Z-axis travel 900 mm
Table clamping surface 3000 × 1700 mm
Spindle nose – table 66 – 966 mm
Table load 11,000 kg
C-axis +/- 360°
B-axis +100° / -110°
Tool holder HSK 63 A
Main drive motor spindle 63 kW
Spindle speed 18,000 rpm
Spindle torque 106 Nm
Max. rapid traverse speed X and Y axes 15,000 mm/min
Machine weight 37,700 kg
MAX5 CNC control
AXS control with removable electronic handwheel
Pentium technology, SSD storage, 2 GB RAM, Ethernet interface, USB interface, internal system self-diagnosis, WINDOWS platform
Synchronous thread cutting
60-fold tool changer
5-axis fork head
Motor spindle
Spindle cooler
Chip conveyor
5-axis simultaneous machining
