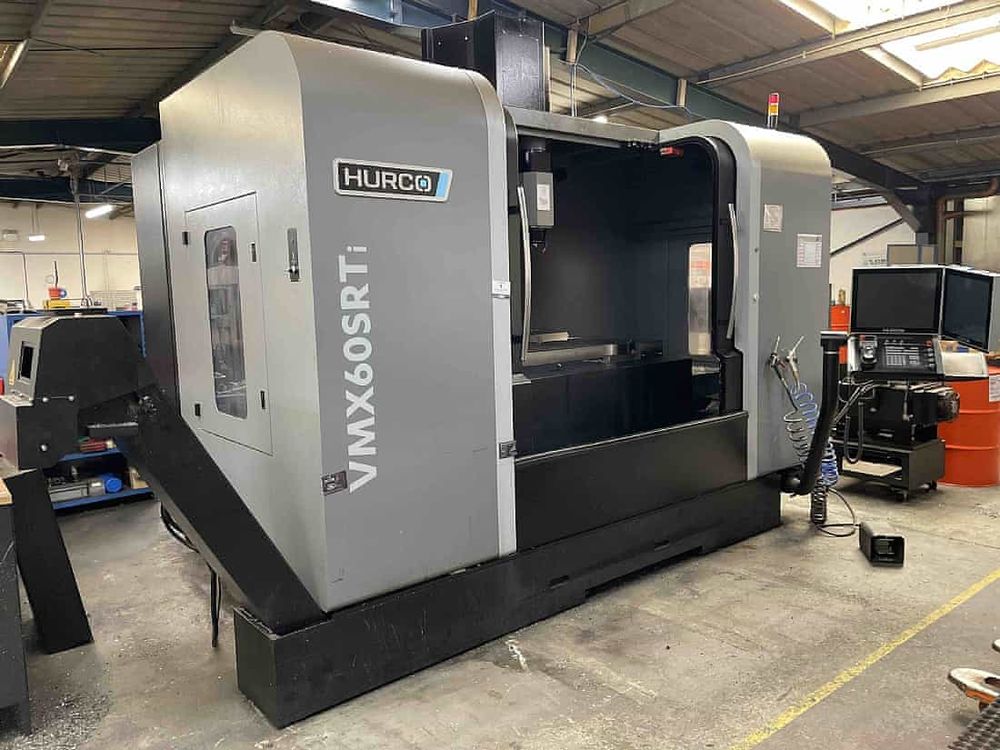

Hurco VMX60SRTi 5 Axis VMC 5 Axis

X Axis Travel: 1,524 mm
Y Axis Travel: 660 mm
Z Axis Travel: 610 mm
B Axis Travel: +/- 92°
C Axis Travel: 360°

Spindle Nose to Table (Min-Max): 13 / 622 mm
Table Size: 1,676 x 660 mm
Rotary Table Diameter (C): 599 mm
Max Weight on Table: 1,360 kg
Max Weight on Rotary/Trunnion Table: 500 kg
T-Slot Size: 5 x 18 mm
Control: Hurco CNC
Max Spindle Speed: 12,000 rpm
Spindle Power (Peak – 1 min): 0.5 kW
Spindle Torque (Peak – 1 min): 118 Nm @ 2,900 rpm
Spindle Taper: BT-40
Number of Tools: 40
Max Tool Diameter: 75 mm
Max Tool Length: 249 mm
Max Tool Weight: 7 kg

Rapid Traverse X Axis: 32 m/min
Rapid Traverse Y Axis: 32 m/min
Rapid Traverse Z Axis: 24 m/min
Max Programmable Feedrate: 24 m/min
Rapid Traverse B Axis: 90 rpm
Rapid Traverse C Axis: 100 rpm

Machine Footprint: 5,662 x 3,921 mm
Machine Height: 3,298 mm
Machine Weight: 10,900 kg
Power Rating / Full Load: 70 KVA
