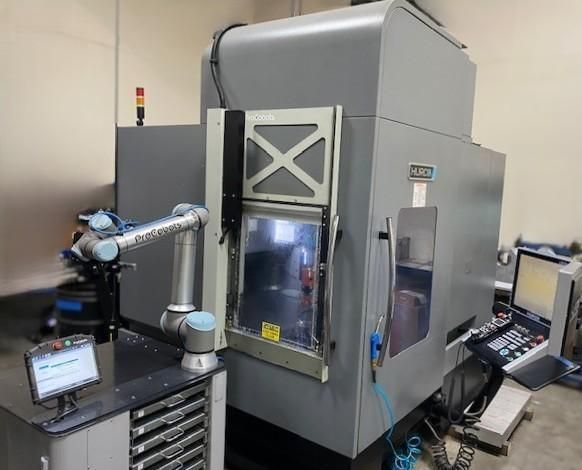

Hurco VC500i 5 Axis

Travel X: 20.5"
Travel Y: 17.7"
Travel Z: 15.8"
C axis motion: 360°
B axis motion: -110° / +110°

Control: MAX 5
Coolant capacity: 84.5 gallons
Positioning accuracy: ±0.0002"
Repeatability: ±0.0001"
Least command increment: 0.0001"

Spindle taper: CAT40
Spindle speed: 12000 rpm
Spindle motor power: 10 HP
Spindle torque: 35.3 ft-lbs

Rapid traverse X axis: 945 ipm
Rapid traverse Y axis: 945 ipm
Rapid traverse Z axis: 945 ipm
Max programmable feedrate: 945 ipm
B axis feed rate: 25 rpm
C axis feed rate: 25 rpm

Automatic tool changer capacity: 30 stations
Tool to tool time: 2.5 sec
Max tool diameter: 3.1"
Max tool length: 9.8"

Table working surface: 19.7" diameter
Maximum table load: 550 lbs
Spindle nose to table: 5.9" – 21.7"
Floor to table surface: 34.1"

Machine dimensions: 163" x 141.9" x 115.3"
Machine weight: 18520 lbs
Voltage: 230 VAC
Air requirement: 3–15 CFM at 80–100 psi

Integrated ProCobot robot arm system
Integrated drawer system
