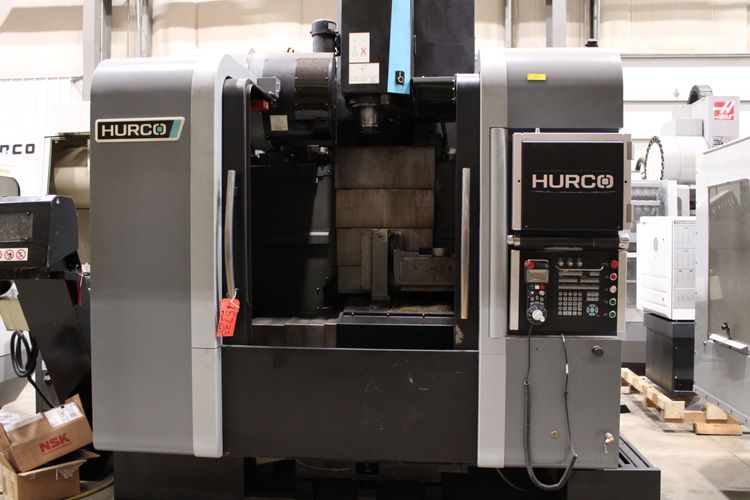

Hurco VMX30UHSi 3 Axis

X Axis Travel: 30 in
Y Axis Travel: 20 in
Z Axis Travel: 20.5 in
A Axis Travel: +30° / -110°
C Axis Travel: 360°
Rapid Traverse X,Y,Z: 1771 / 1771 / 1575 ipm
Max Programmable Feedrate: 1575 ipm
Spindle Speed Max: 18000 rpm
Spindle Motor Peak: 47 hp (35 kW) @ 2800 rpm
Spindle Torque Peak: 88 ft-lb (119 Nm)
Spindle Nose to Table: 3.5 – 24 in
Table Diameter: 9.8 in
T-slot Size: 6 × 0.48 in × 60°
Maximum Table Load: 440 lb
Tool Capacity: 40
Maximum Tool Diameter: 3.1 in
Maximum Tool Length: 11.8 in
Maximum Tool Weight: 15.4 lb
A,C Axis Max RPM: 25 rpm
Operating Floor Space: 155.1 × 161.5 in
Machine Dimensions: 114 × 87 × 105 in
Machine Weight: 11640 lb
Electrical Power Rating: 48 KVA
5-axis machining center configuration
Chip conveyor equipped
