Hurco Hurco WinMax 2800 rpm TM12i 2 Axis

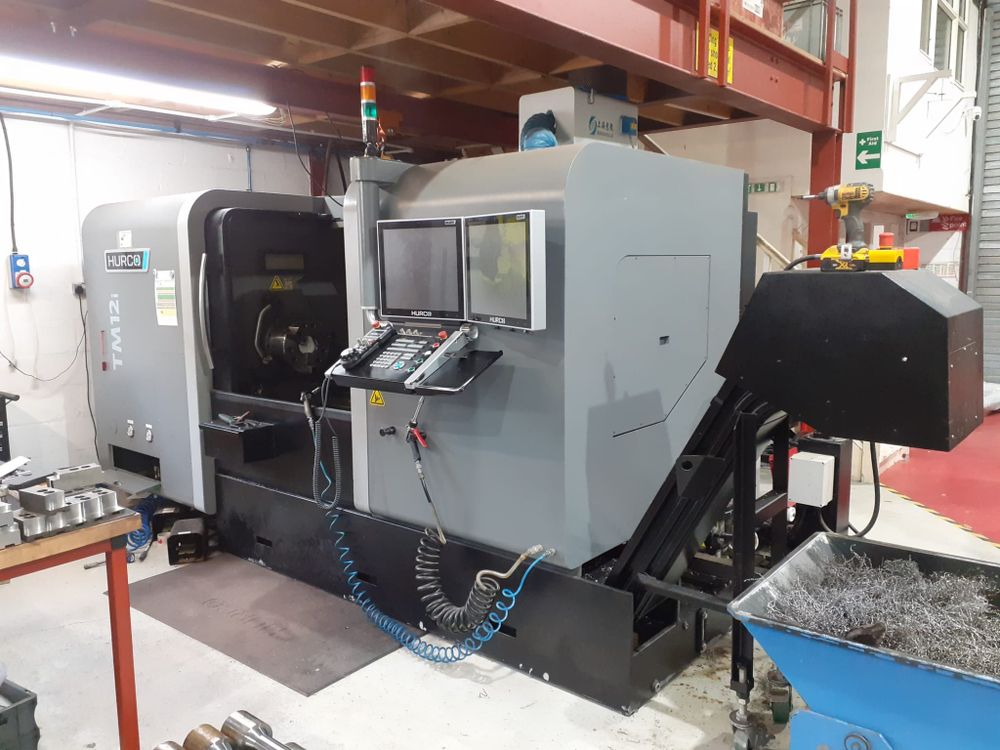

HURCO TM12i
Year: 2020

Control: Hurco WinMax
Bar capacity: 101 mm
Chuck size: 305 mm (12")
Distance between centres: 1135 mm
Maximum cutting diameter: 510 mm
Maximum cutting length: 937 mm
Swing: 680 mm
Swing over cross-slide: 361 mm
Spindle speed: 2800 rpm
Spindle motor power: 17.9 kW
Spindle nose: A2-11
Turret positions: 12 station
Tool size: 32 x 32 mm
Boring bar holder diameter: 50 mm
X-axis travel: 305 mm
Z-axis travel: 1016 mm
Rapid feedrates (X/Z): 19 / 24 m/min
Machine dimensions: 4826 x 3366 x 223 mm
Machine weight: 7601 kg

3-jaw chuck
Coolant system
Low voltage light
Parts catcher
Swarf conveyor
Tailstock
Tool setter
