Hurco Hurco WinMax 5 3000 rpm TM10i 2 Axis

Ref : 2721797-3-GO

Condition : Used

Manufacturer : Hurco

Controller : Hurco WinMax 5

Spindle Speed : 3000 rpm

Model : TM10i

Nb Of Axis : 2 Axis

Year(s) : 2020

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

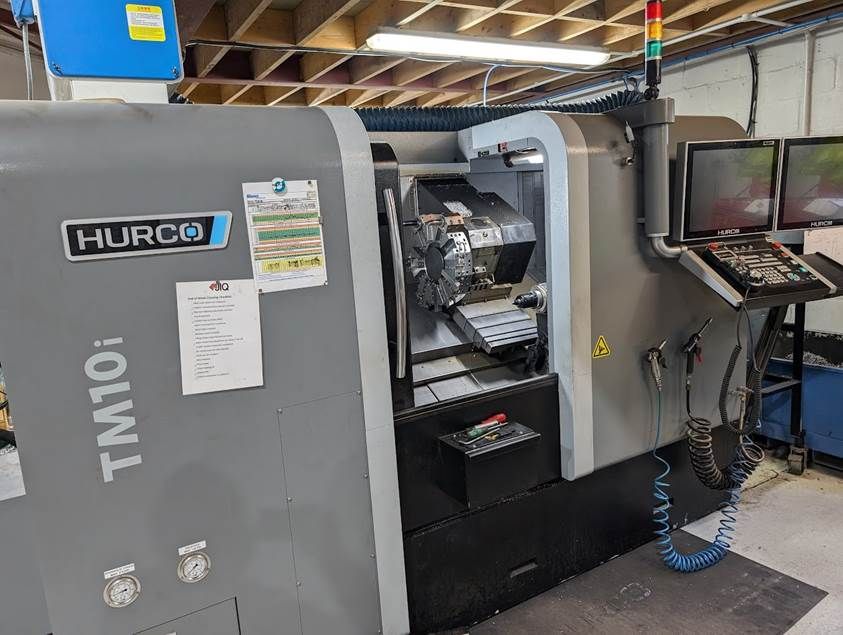

HURCO TM10i
Year: 2020

Control: Hurco WinMax 5
Bar capacity: 81 mm
Chuck size: 254 mm (10")
Distance between centres: 745 mm
Maximum cutting diameter: 450 mm
Standard cutting diameter: 304 mm
Maximum cutting length: 760 mm
Swing: 582 mm
Swing over cross-slide: 402 mm
Spindle speed: 3000 rpm
Spindle motor power: 22 kW
Spindle nose: A2-8
Turret positions: 12 station
X-axis travel: 250 mm
Z-axis travel: 790 mm
Rapid feedrates: 30 m/min
Machine weight: 5014 kg

3-jaw chuck
Coolant system
Interlocked guards
Low voltage light
Parts catcher
Swarf conveyor
Tailstock
Tool setter
