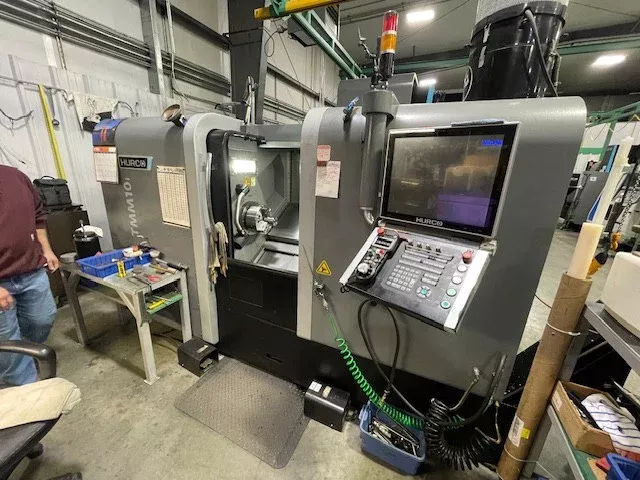

Hurco Hurco WinMax CNC Control 3000 RPM TMM10I 3 Axis

HURCO TMM10I
2018

Swing Over Bed: 22.9"
Turning Diameter, Shaft Diameter: 11.6"
Machining Length: 27.6"
Distance Between Centers: 27.4"
Chuck Size 1, 2: 10"
Spindle Nose 1, 2: A2-8
Spindle Bore Diameter 1, 2: 3.5"
Spindle Bar Capacity 1, 2: 3.07"
Spindle Speeds 1, 2: 3000 RPM
Spindle Horsepower 1, 2: 24 HP
X-Axis Travel 1, 2: 9.8"
Z-Axis Travel 1, 2: 29.5"
C-Axis Travel 1, 2: 0.001 DEG
Rapid Traverse Rates X1, X2: 750 IPM
Rapid Traverse Rates Z1, Z2: 945 IPM
Turret Configuration 1, 2: 12 VDI
Turret Rotary Tool Spindle Speed 1, 2: 4000 RPM
Turret Rotary Tool Horsepower 1, 2: 8.85 HP
Tailstock Taper: MT 4
Machine Weight: 11,023 lbs

Chip Conveyor
10" 3-Jaw Hydraulic Chuck
Full Complement of Rotary and Static Holders
Mist Collect System
Tool Presetter
(6) I.D. Rotary Tool Holders
(3) O.D. Rotary Tool Holders
Hurco WinMax CNC Control
Hand Held Remote MPG
