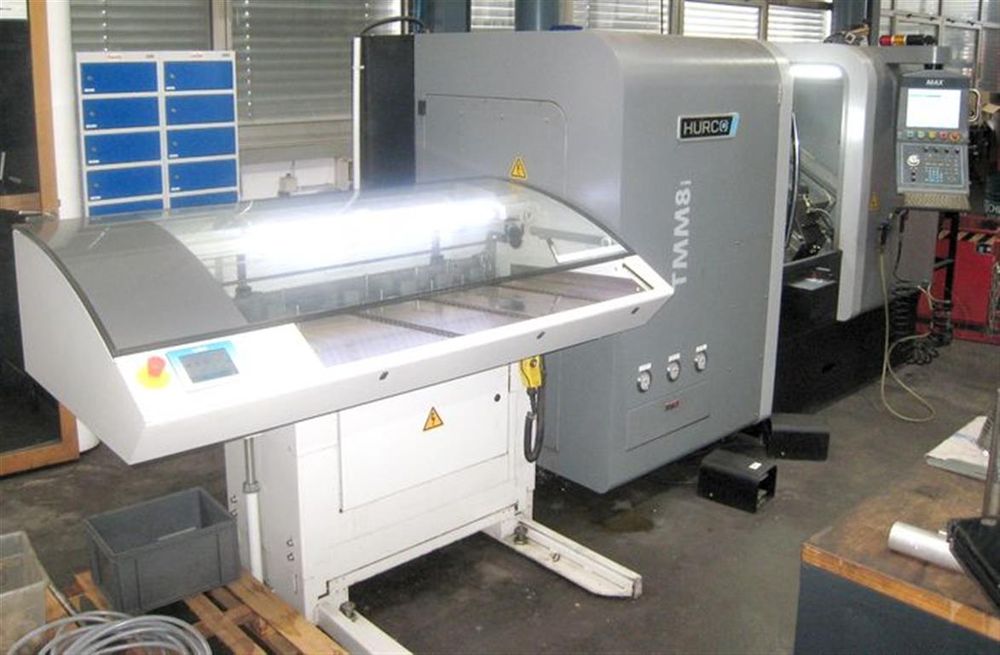

Hurco Single Max CNC control 4,800 rpm TMM 8i 3 Axis

X-axis travel 198 mm
Z-axis travel 508 mm
C-axis 0.01°
Single Max CNC control
DXF function
Tooleye tool measurement
Ultipockets
Synchronous threading
3D graphics
Tailstock
Chip conveyor
Hollow clamping cylinder
Bar loader ILS-BREUNING MUK 7012-III (2017)
Turning diameter 256 mm
Swing over slide 260 mm
Turning length 455 mm
Spindle bore 52 mm
Spindle speed range 4,800 rpm
Main spindle motor power 18 / 11 kW
Driven tool speed 5,000 rpm
Driven tool motor power 4.4 kW
Number of driven tool stations 12
Turret 12 stations VDI 30
Tool holder VDI 30
Rapid traverse X-axis 19 m/min
Rapid traverse Z-axis 24 m/min
3-jaw chuck AUTO STRONG N 208 D200 mm
2 driven tools included
34 static tools included
Power requirement 28 kVA
Machine weight approx. 4,500 kg
Space requirement approx. 2.9 x 2.3 x 2.2 m
