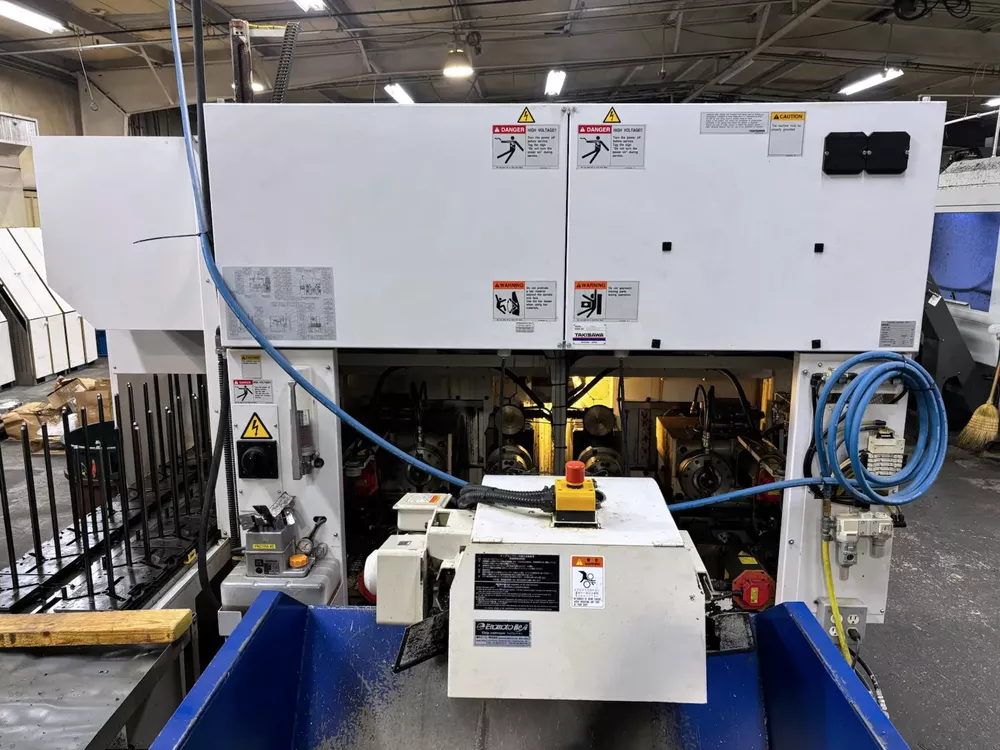

Takisawa Fanuc 0i-TD 4,500 rpm TT-2100G 3 Axis

X-axis travel upper: 6.50"
X-axis travel lower: 6.50"
Z-axis travel upper: 13.78"
Z-axis travel lower: 13.78"
Rapid traverse X: 787 ipm
Rapid traverse Z: 945 ipm
C-axis on both spindles
Control: Fanuc 0i-TD
Twin spindles
Twin 12-station turrets
Auxiliary touchscreen panel
Full chip conveyor
Parts discharge chute
Bar support rack
Bar capacity: 2.00"
Maximum turning diameter: 8.27"
Maximum turning length: 11.8"
Spindle nose: A2-6
Spindle speed: 4,500 rpm
Spindle motor power: 20/15 hp
Spindle bore: 2.44"
Chuck size: 8"
Stations per turret: 12
Tool shank size: 0.75"
Boring bar size: 1.00"
