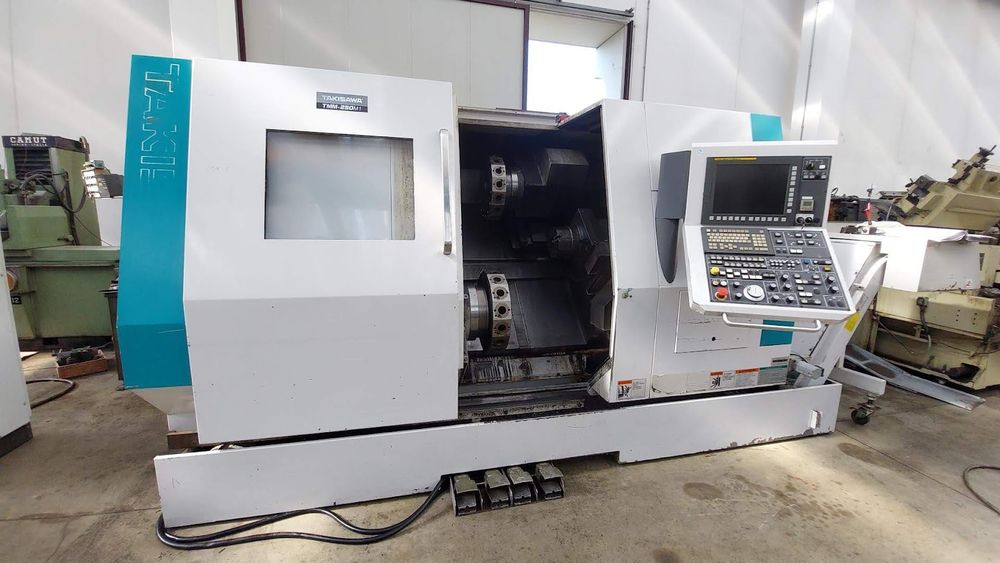

Takisawa Fanuc 31i - Model B 4000 rpm TMM 250M1 2 Axis

X Axis Travel First Turret 265 mm
Y Axis Travel First Turret ±50 mm
Z Axis Travel First Turret 760 mm
X Axis Travel Second Turret 228 mm
Z Axis Travel Second Turret 760 mm
Rapid Traverses X/Y/Z 30 m/min
Main Spindle Nose ASA 8
Main Spindle Power 22 Kw
Main Spindle Bar Passage 75 mm

Swinnable Diameter 350 mm
Swinnable Length 800 mm

Main Spindle RPM 4,000
Number of Tool Turrets 2
Tool Positions First Turret 15
Motored Positions First Turret 15
Tool Positions Second Turret 15
Motored Positions Second Turret 15
High Pressure Coolant Yes

Counterspindle Yes
Counterspindle Nose ASA 6
Counterspindle RPM 4,000
Counterspindle Power 18.5 Kw
Counterspindle Z Travel 800 mm
Control Fanuc 31i - Model B
