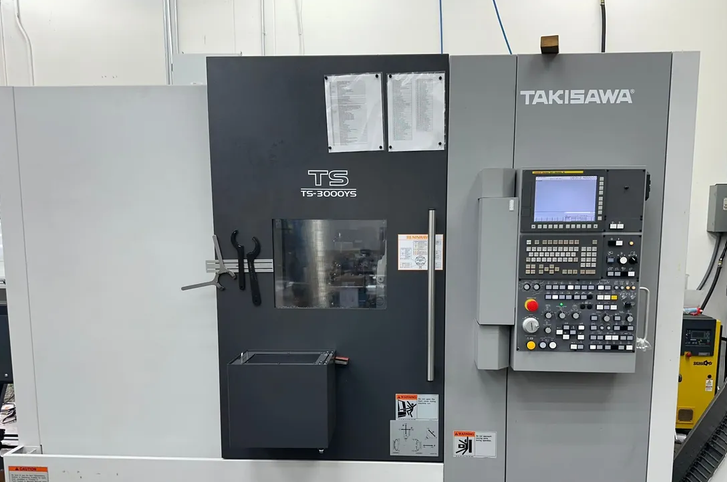

Takisawa Fanuc 32i Model B 5,000 RPM TS-3000 YS 4 Axis

X-Axis Travel: 261 mm
Y-Axis Travel: -50 / +70 mm
Z-Axis Travel: 630 mm
C-Axis Positioning: 0.001°
Control: Fanuc 32i Model B
Renishaw Probing System
Bar Capacity: 67 mm (2.64")
Swing Diameter: 292 mm (11.5")
Turning Length: 545 mm (21.46")
Main Spindle Speed: 5,000 RPM
Main Spindle Power: 15/11 kW
Main Spindle Bore: 77 mm
Sub Spindle: Yes
Sub Spindle Speed: 6,000 RPM
Sub Spindle Power: 11/7.5 kW
Sub Spindle Bore: 53 mm
Counter Spindle Travel: 665 mm
Live Tooling: Yes
Driven Tool Speed: 6,000 RPM
Driven Tool Power: 7.5/3.7 kW
Tool Positions: 12
Tool Holder: BMT-40
Rated Power: 31 kVA
Dimensions (Lathe): 86" x 111" x 91"
Dimensions with Chip Conveyor: 170" Length
Dimensions (Bar Feeder): 66" x 80" x 54"
Weight: 15,000 lbs

5-Axis Configuration
LNS QLS80 S2 Bar Feeder
Chip Conveyor
Part Catcher for Right Spindle
Air Through Counter Spindle
Water Through Counter Spindle
Driven Tools Included
Only 3,200 Hours Run Time
