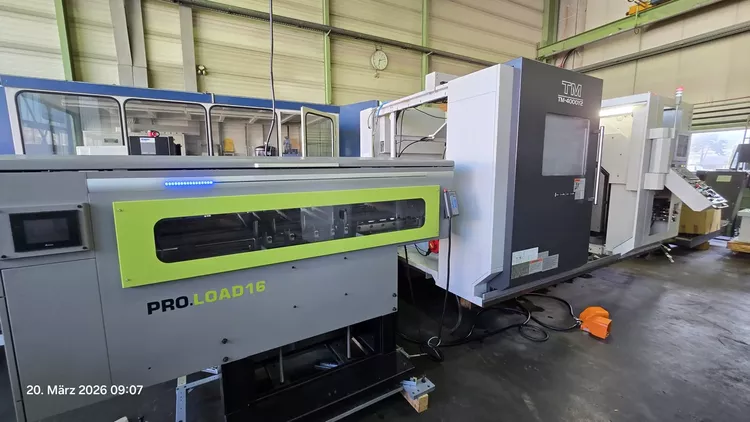

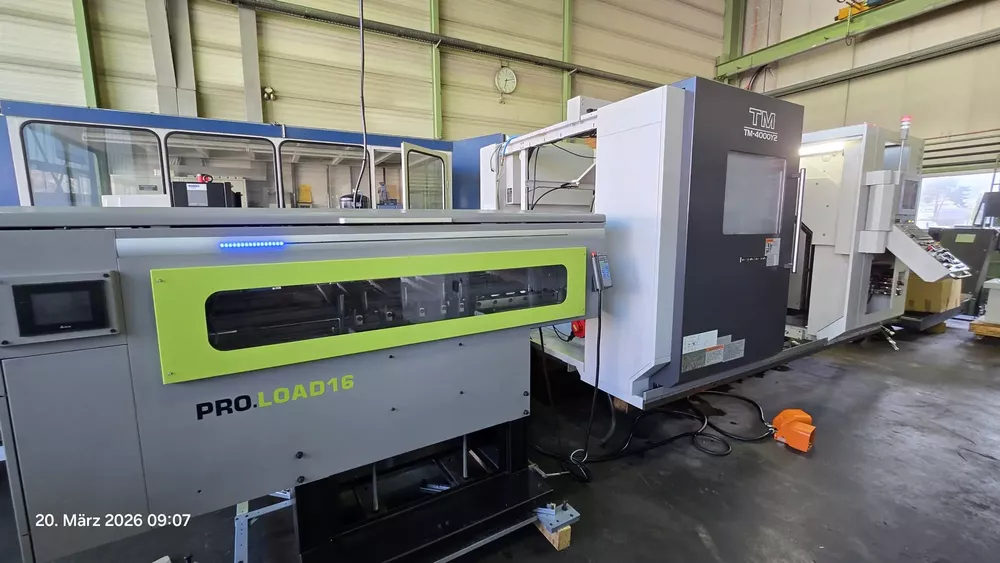

Takisawa Fanuc 31iB 4,200 rpm TM-4000-IIY 6 Axis

X1/X2 axis: 230/210 mm
Y1/Y2 axis: 120/80 mm
Z1/Z2 axis: 800/800 mm
Counter spindle travel: 900 mm
Rapid traverse X/Y/Z: 22/12/30 m/min
Glass scales in X1 and Y1 axis
Air outlet counter spindle
Parts catcher
Conveyor belt
Tooleye
Helical Interpolation
Raku-Raku tool monitoring
Tool life management
Tool group management
Load monitoring
Wear compensation
Parts counter
Operating time
KNOLL coolant system
30 bar high-pressure pump
Barload BK105L bar loader
Max. Turning Diameter: 215 mm
Max. Turning Length: 800 mm
Max. bar capacity: 82 mm
Main spindle power output: 18,5 kW
Main spindle max. speed: 4,200 rpm
Main spindle nose: A2-8
Main spindle C-axis
Counter spindle drive power: 15 kW
Counter spindle max. speed: 5,000 rpm
Counter spindle nose: A2-6
Counter spindle C-axis
Driven tool power: 7.5 kW
Driven tool max. speed: 6.000 rpm
Two 12-position turrets
24 driven tool positions
Switch-on time: approx. 5,700 hours
Processing time: approx. 1,100 hours
