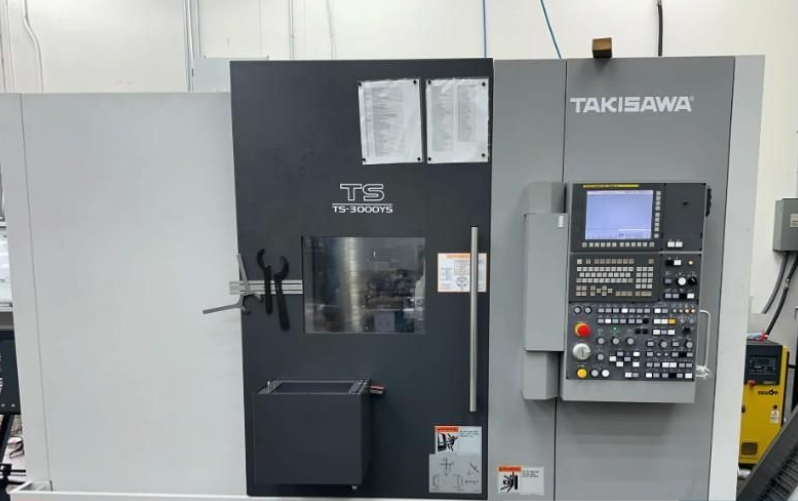

Takisawa Fanuc 32i-Model B CNC 5,000 rpm TS-3000YS 6 Axis

X-axis travel: 10.51 in
Y-axis travel: -1.97 to +2.76 in
Z-axis travel: 24.8 in
B-axis travel: 26.18 in
C-axis indexing: 0.001°
6 axes
Control: Fanuc 32i-Model B CNC
Chip conveyor
Parts catcher
Bar feeder
Tool presetter
Live tooling
Y-axis
Sub spindle
Bar capacity: 2.64 in
Swing: 23.62 in
Turning diameter: 14.57 in
Center distance: 21.65 in
Main spindle speed: 5,000 rpm
Main motor: 20 hp
Spindle nose: A2-6
Sub spindle
Sub spindle speed: 6,000 rpm
Sub spindle motor: 15 hp
Sub spindle bar capacity: 2.09 in
Royal collet chuck
Live tooling speed: 6,000 rpm
Live tooling motor: 10 hp
12-station turret
Machine dimensions: 111 × 85 × 91 in
Machine weight: 14,000 lb
