Takisawa Fanuc 0i-TF 3,500 rpm LA-250 2 Axis

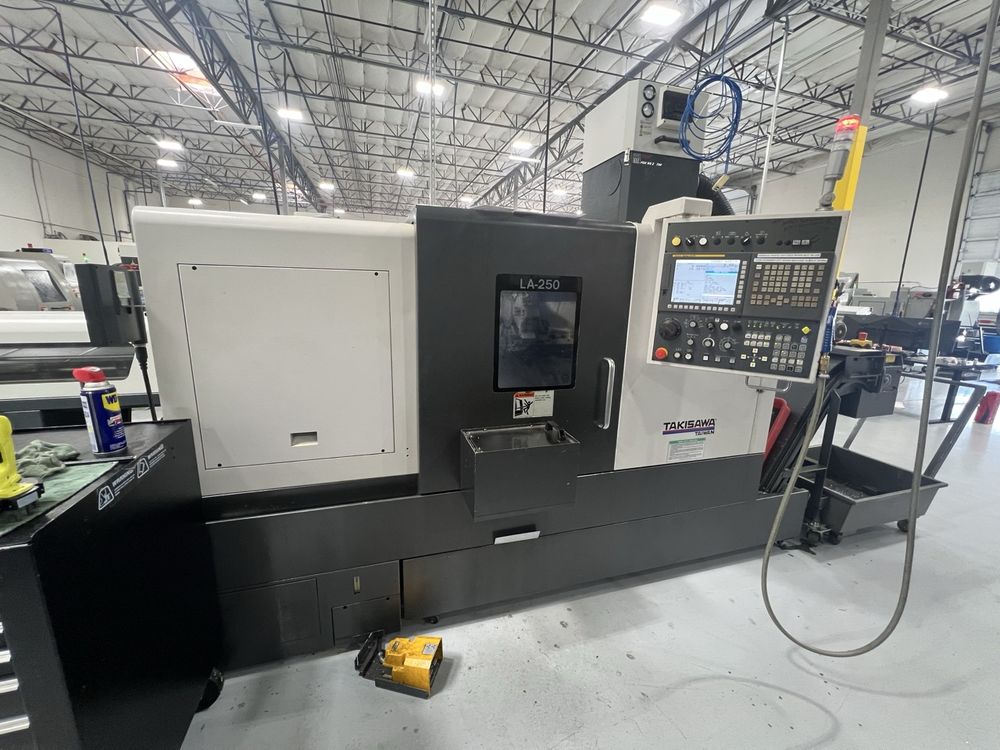

TAKISAWA LA-250
2018

Distance between centers: 34.6″
Chuck diameter: 10″
Max turning diameter: 17.7″
Max turning length: 30.1″
Bar capacity: 3″
X-axis travel: 10″
Z-axis travel: 31.5″
Spindle speed: 3,500 rpm
Spindle nose: A2-8
Spindle thru-hole diameter: 3.4″
Spindle bearing diameter: 4.7″
Turret: 12 station
OD tool shank: 1″ square
Boring bar holder diameter: 1.5″
Tool change time: 0.6 sec
Tailstock stroke: 28.7″
Tailstock shaft stroke: 5.9″
Tailstock taper: MT #5
Tailstock shaft hole diameter: 4.3″
X-axis rapid traverse: 630 ipm
Z-axis rapid traverse: 787 ipm
Jog feed rate X-axis: 0–50 ipm
Jog feed rate Z-axis: 0–50 ipm
Spindle motor: 25 / 20 HP
Control: Fanuc 0i-TF
Equipped with tailstock
Equipped with chip conveyor
Equipped with parts catcher
