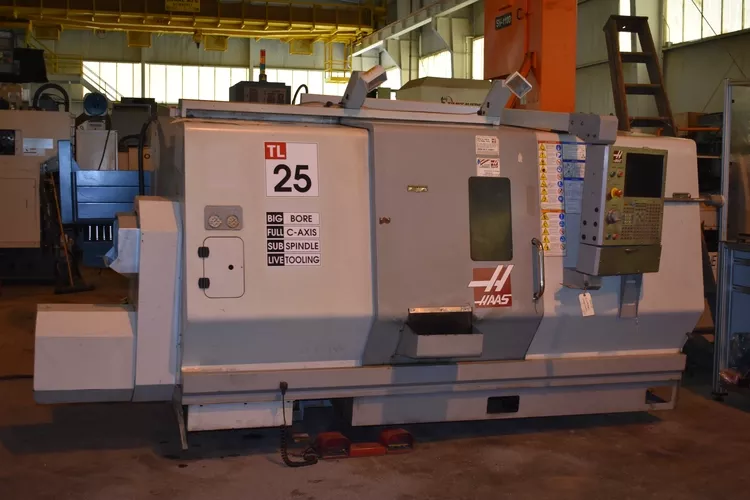

Haas Control Haas CNC Control 2400 RPM TL-25B 2 Axis

X-axis travel 11.3"
Z-axis travel 34"
Rapid traverse 710 IPM
Control Haas CNC Control
Sub-spindle
Live tooling
Tool presetter
Coolant system
Chip conveyor
Bar capacity 4"
Sub-spindle bar capacity 1.18"
Swing over apron 30"
Swing over cross slide 14.5"
Maximum cutting diameter 16"
Maximum cutting length 34"
Distance between centers 39"
Spindle speed up to 2400 RPM
Spindle motor power 40 HP
Live tooling spindle speed 0 to 3000 RPM
Live tooling motor power 5 HP
Sub-spindle speed 0 to 4000 RPM
Sub-spindle motor power 8 HP
Chuck size 15"
Collet chuck
3-jaw chuck 15" main spindle
3-jaw chuck 5.25" sub-spindle
12-position turret
Machine weight approximately 17000 lbs
