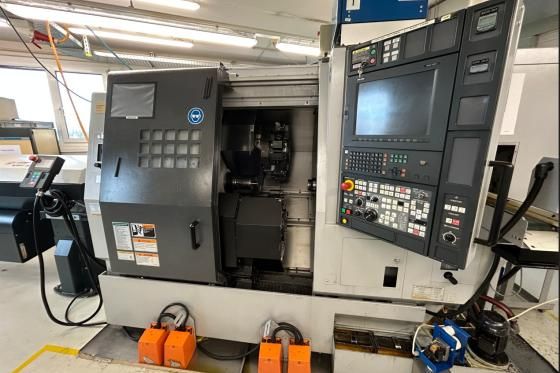

Mori Seiki MAPPS FANUC 6000 rpm ZT1000Y 5 Axis

X-Axis travel: 135 mm
Y-Axis travel: 80 mm
Z-Axis travel: 450 mm
C-Axis rapid traverse: 400 min⁻¹
B-Axis: 510 °

Control: MAPPS FANUC
Max. turning diameter: 250 mm
Spindle bore: 49 mm
Spindle speed range: 6000 rpm
Spindle power: 30 kW
Subspindle speed: 6000 rpm
Subspindle bore: 49 mm
Live tool speed: 6000 rpm
Live tool speed lower turret: 6000 rpm
Turret indexing time: 0.2 sec per station
Heavy duty cutting capacity: 162.7 mL/min at 6 mm depth of cut
Turret positions: 12
Lower turret positions: 12
Bar feeder LNS (2017)
Large tooling package with driven/live tools
8 controlled axes
2 spindles
2 turrets
Machine length: 2800 mm
Machine width: 2000 mm
Machine height: 2000 mm
Machine weight: 5000 kg
