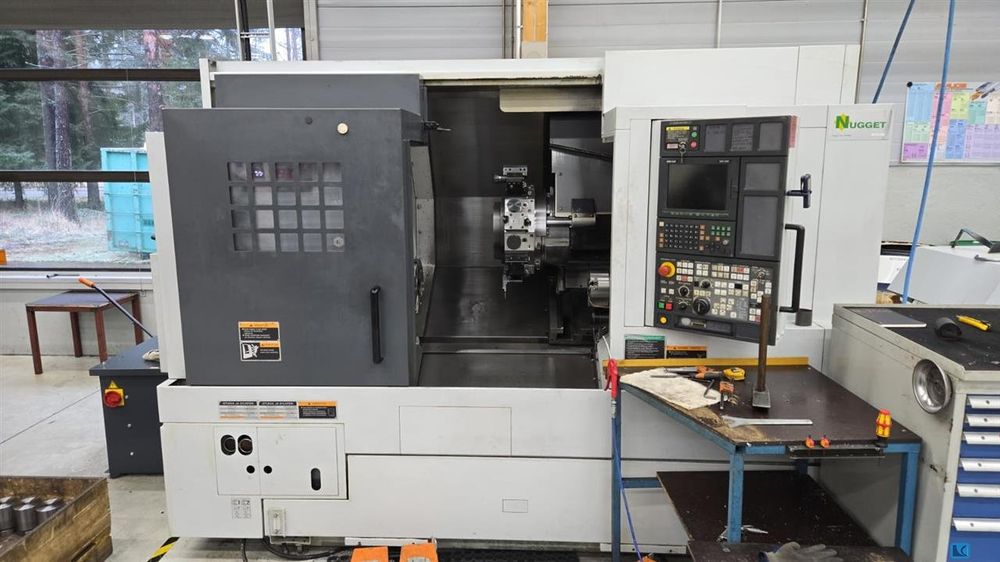

Mori Seiki MSX 850 MAPPS II 6000 RPM NL 2500 SY / 700 4 Axis

Turning Diameter: 356 mm
Turning Length: 705 mm
Swing Diameter: 755 mm
Standard Turning Diameter: 275 mm

X Axis Travel: 260 mm
Y Axis Travel: ±50 mm (100 mm total)
Z Axis Travel: 795 mm

Rapid Traverse (X/Z): 30 / 30 m/min
Rapid Traverse (Y Axis): 10 m/min
Rapid Traverse (B Axis - Sub Spindle Part Transfer): 30 m/min

Control: MSX 850 MAPPS II

Spindle 1 Speed: 4000 RPM
Spindle 1 Power: 18.5 / 18.5 / 15 kW
Spindle 1 Max Bar Capacity: 80 mm
Spindle 1 Chuck: Kitagawa B 210 (250 mm)

Spindle 2 Speed: 6000 RPM
Spindle 2 Power: 11 / 7.5 kW
Spindle 2 Chuck: Kitagawa B 206 (160 mm)

Turret Stations: 16
Rotary Tool Stations: 16
Tool Interface: VDI 30
Driven Tools Power: 5.5 / 5.5 / 3.7 kW
Driven Tool Speed: 6000 RPM

Total Power Requirement: 39.2 kVA

Chip Conveyor Included

Machine Weight: approx. 6.2 t
Machine Dimensions (L x W x H): approx. 3.1 x 2.0 x 2.2 m
