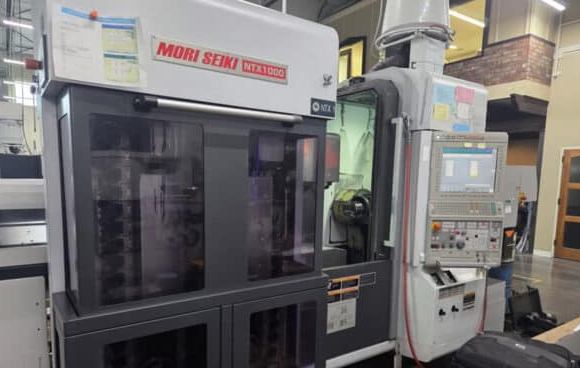

Mori Seiki Control: MSX-711 CNC 6,000 RPM NTX-1000SZM 6 Axis

X-axis travel: 15″
Y-axis travel: +4.1″
Z-axis travel: 18.1″ + 6.1″
X2-axis travel: 6.1″
Z2-axis travel: 24″
B-axis travel: +120°

Minimum B-axis indexing increment: 0.0001°
Spindle indexing increment: 0.0001°

Control: MSX-711 CNC
Sub spindle
Milling capability
Tool presetter
CoolJet high-pressure coolant
Parts catcher
Bar feeder

Bar capacity: 2.0″–2.5″
Swing over workpiece: 14.5″
Swing over cross slide: 14.5″
Turning diameter: 14.5″
Turning length: 16.6″

Main spindle speed: 6,000 RPM
Main spindle speed ranges: 2
Main spindle nose: JIS A2-5 (A2-6)
Main spindle bore: 2.4″–2.9″
Main spindle bearing ID: 3.9″–4.3″
Main spindle motor: 15/15/10 HP
Main spindle torque: 164.5 / 126.9 / 116.5

Sub spindle speed: 6,000 RPM
Sub spindle speed ranges: 1
Sub spindle nose: 3.1″ G6 flat
Sub spindle bore: 1.5″
Sub spindle bearing ID: 2.7″
Sub spindle motor: 9 / 5.5 HP
Sub spindle torque: 27.3 / 16.2

Tool spindle speed: 12,000 RPM
Tool spindle taper: Capto C5

Turret 2 tool stations: 10
Turret indexing time: 0.19 sec
Square tool size: 0.8″
Boring bar diameter: 1.2″
Turret 2 milling speed: 6,000 RPM
Turret 2 motor: 2 / 1.6 HP

Rapid traverse X/Y: 1,574.8
Rapid traverse Z: 1,968.5
Rapid traverse X2: 787.4
Rapid traverse Z2: 1,417.3
Rapid traverse sub spindle axis: 1,471.3

Tool changer capacity: 76
Tool diameter (adjacent): 2.7″
Tool diameter (non-adjacent): 5.1″
Tool length: 9.8″

Electrical power: 41.2 kVA
Machine dimensions: 100.6″ × 106.3″ × 94.4″
Machine weight: 19,800 lbs
