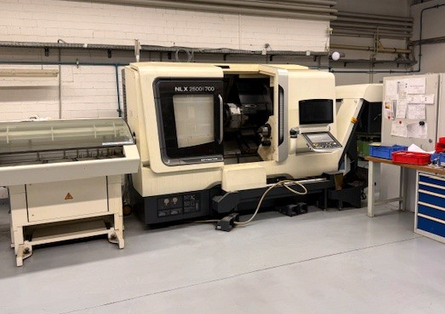

Mori Seiki Mitsubishi M730UM with CELOS 4,000 rpm NLX2500SY/700 2 Axis

CNC Controller: Mitsubishi M730UM with CELOS
Y-axis Travel: ±50 mm
Turning Length: 705 mm
Max. Turning Diameter: ø 356 mm
Swing Over Bed: ø 920 mm
Swing Over Cross-Slide: 742 mm
Bar Work Capacity: 80 mm
Upper Turret X-axis Travel: 260 mm
Upper Turret Z-axis Travel: 795 mm
Number of Tool Slots: 12
Speed Driven Tools: 10,000 RPM
Main Spindle Speed: 4,000 rpm
Main Spindle Drive Power: 15.8/15 kW
Main Spindle Bore: 111 mm
Main Spindle Chuck Type: 10" KITAGAWA
Main Spindle Nose: JIS A2-8
Counter Spindle Speed: 6,000 rpm
Counter Spindle Drive Power: 11/7.5 kW
Counter Spindle Bore: 73 mm
Counter Spindle Chuck Type: 6" KITAGAWA
Counter Spindle Nose: JIS A2-5
Counter Spindle Travel: 734 mm
Chip Conveyor
Rotating Inspection Windows
Signal Lamp
Workarea Light
Air or Water Through Spindle Center
RENISHAW Measuring Probe
Working Hours Under Power: 3,493
Spindle 1 Hours: 1,700
Rated Power: 45 kVA
Machine Length: 3,350 mm
Machine Width: 2,110 mm
Machine Height: 2,200 mm
Machine Weight: 5,820 kg
