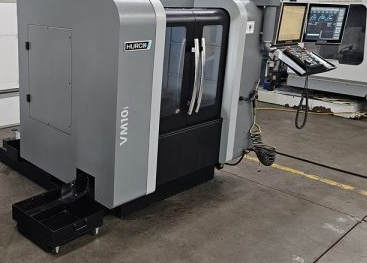

Hurco VM10i 3 Axis

X-axis travel 26″
Y-axis travel 16″
Z-axis travel 20″
Rapid rate X-axis 944.9 IPM
Rapid rate Y-axis 944.9 IPM
Rapid rate Z-axis 944.9 IPM
Hurco WinMax Control Version 10
Part and tool probing
Table size 30″ x 16″
Max table load 3,300 lbs
Spindle motor 15 HP
Spindle speed 10,000 RPM
Spindle taper CT 40
Automatic tool changer 20 ATC, side mount
Max tool diameter 3.5″
Max tool length 9.8″
Max tool weight 15.4 lbs
Spindle nose to table min/max 4 / 24″
Machine hours 5,116
Spindle hours 1,395
Machine weight 7,000 lbs
Shipping dimensions 72″W x 69″D x 96″H
Chip auger 73″x12″x12″H
Coolant tank & pump 47″x20″x17″H
Complete with tool holders, perishable tooling, Hurco vise, manuals
Solid cast iron frame
One-piece machine base
Brushless AC servos
Heavy-duty linear rails on all axes
Double-nut ball screws anchored at both ends
Electric side mount swing arm tool changer, 2.5 second tool change
Wider table extends across entire Y-axis
Table moves forward for easy access
Yaskawa Sigma 5 drives
LED lighting
Max5 console with dual 19″ screens
WinMax conversational and industry standard NC programming
Small footprint, large work cube
