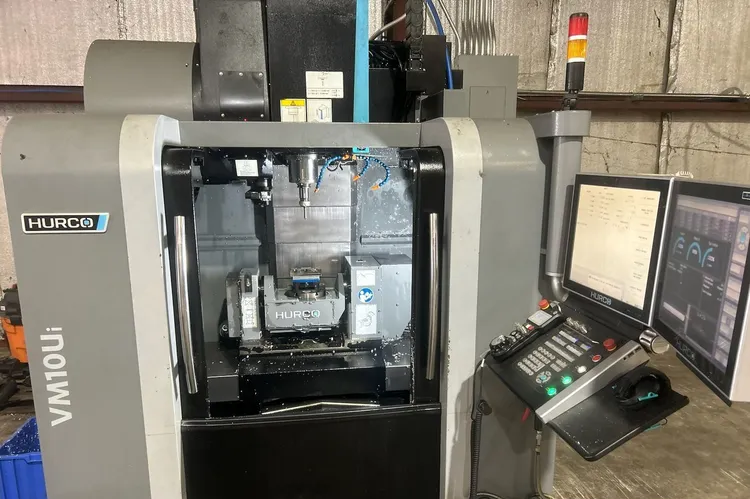

Hurco VM10Ui 3 Axis

HURCO VM10Ui
2020

Max operating floor space 128.5″ x 133″
Height 106.9″
Weight 7,392 lbs
X travel 21″
Y travel 16″
Z travel 19″
A-axis travel +30°/-110°
C-axis travel 360°
Spindle nose to table min 1.4″
Spindle nose to table max 20.4″
Table diameter 7.8″
Max weight on table 330 lbs
T-slot size 6″ x 0.39″
Max spindle speed 12,000 RPM
Spindle power 10 HP
Spindle torque 35.2 ft/lbs @ 1500 RPM
Tool type CAT 40
Number of tools 20
Max tool diameter 3.1″
Max tool length 9.8″
Max tool weight 15.4 lbs
Rapid traverse X/Y/Z axis 1,102 in/min
Max programmable feedrate 1,102 in/min
Rapid traverse A/C axis 25 RPM
Electrical 14 KVA
Coolant through spindle
