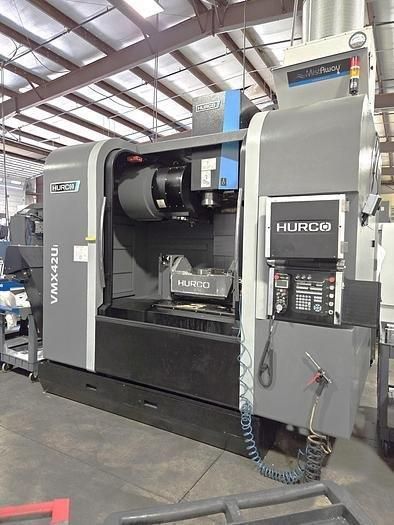

Hurco VMX-42Ui (5-Axis) 5 Axis

Hurco VMX-42Ui (5-Axis)
2016

Control: Winmax w/Ultimotion
15.7" dia 5-Axis Trunnion Table
X-42" Y-24" Z-20.5"
12000 rpm, 40 taper, 24 hp, 40 atc
Coolant Through Spdl
Probing, Chip Conv

Travels: X-Axis Travel 42.01
Y-Axis Travel 24.01
Z-Axis Travel 20.5
Spindle Nose to Table Top Minimum 3.5
Maximum 24

Spindle: Spindle Speed: Minimum (RPM) 0 rpm
Maximum 12000 rpm
Spindle Taper 40 Cat
Main Motor (HP) 24 hp

Tool Changer: Tool Changer Positions 40 atc
Table: Size 15.7" Diameter
Maximum Load 550 lbs.

4th-5th Axes: Table Rotation (Full Contouring) 360,000°
A-Axis Tilt -110° to +30°

Equipped With:
Hurco Winmax 5-axis CNC Control with Ultimotion
Simultaneous 5 Axis Capabilty
Coolant Through the Spindle
Renishaw RTS Contact Tool Probe and RMP600 Part Probe
Chip Conveyor
Centerline Probing
Mist Away Variable Speed Mist Collector
Flood Coolant System with Grundos Circulation Pump
Spindle Air Blast, Status Lights, Remote Jog Handle, Advanced Verification Graphic,
Enhanced DXF File Transfer Ability, NC Productivity Package, Ultipockets,
Insert Pockets, Rigid Tapping, Helical Ramp, NC Conversational Merge,
Select Surface Finish Quality, Tool & Material Library, UltiMotion,
Tool Change Optimization, MaxUI, Touch Screen Control, Ethernet Interface,
USB Port Interface, Floppy Disk Drive, RS-232 Interface
All Available Manuals
Hours: Machine Power On: 12,494 Spindle hours: 6,326
