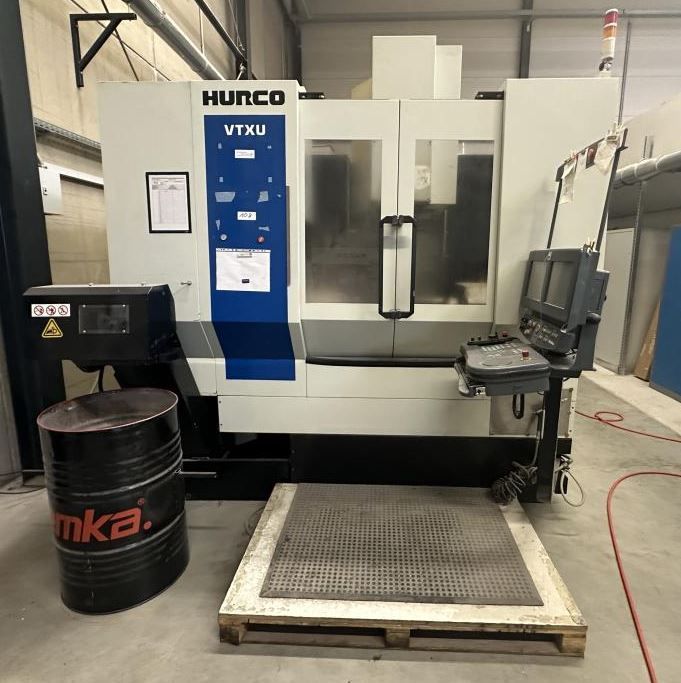

Hurco VTXU 3 Axis

HURCO VTXU
2012

Control: HURCO WinMax
X-axis travel: 800 mm
Y-axis travel: 700 mm
Z-axis travel: 510 mm
Table clamping surface diameter: 610 mm
Maximum workpiece load: 400 kg
Table rotation: 360°
Table swiveling range: 140°
Spindle orientation: vertical
Maximum spindle speed: 12000 RPM
Spindle taper: ISO SK 40
Continuous spindle power: 18 kW
Maximum torque: 237 Nm
Maximum feed rate: 15000 mm/min
Rapid traverse: 35000 mm/min
Tool magazine capacity: 48 positions
Maximum tool length: 280 mm
Power requirement: 60 kVA
Voltage: 380 V
Frequency: 50 Hz
Machine length: 5500 mm
Machine width: 4500 mm
Machine height: 2800 mm
Machine weight: 13800 kg
Guideway covers: yes
Coolant unit: yes
Enclosed cabin: yes
Chip conveyor: yes
