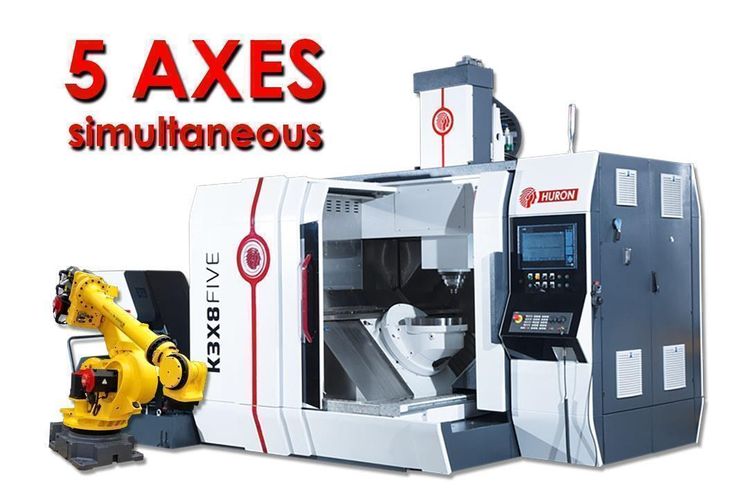

Huron K3X8F 5 Axis

Axis Travel X 780 mm
Axis Travel Y 700 mm
Axis Travel Z 500 mm
Table Size Diameter 500 mm
Max Workpiece Diameter 700 mm
Max Workpiece Weight 300 kg
Distance Spindle Nose to Table Top 525 mm
A Axis Tilt +30° / -180°
C Axis Rotation 360° Continuous

Control Siemens
Spindle Power 36 kW
Spindle Taper HSK 63A
Max Spindle Speed 16,000 rpm
Rapid Traverse 50,000 mm/min
Power Requirement 50 kW

Machine Length 5,520 mm
Machine Depth 3,320 mm
Machine Height 3,325 mm
Machine Weight 10,000 kg

5-Axis Simultaneous Machining Center
High Pressure Coolant Through Spindle
Chip Conveyor Belt
Vibration Monitoring
Laser Tool Probe Blum Micro
Workpiece Probe Blum TC52
Fanuc Robot Charging System RB
Robot A05B-1330-B205 (Fanuc Robot R-1000iA/100F)
Controller A05B-2601-B112 (Fanuc System R-30iB)
