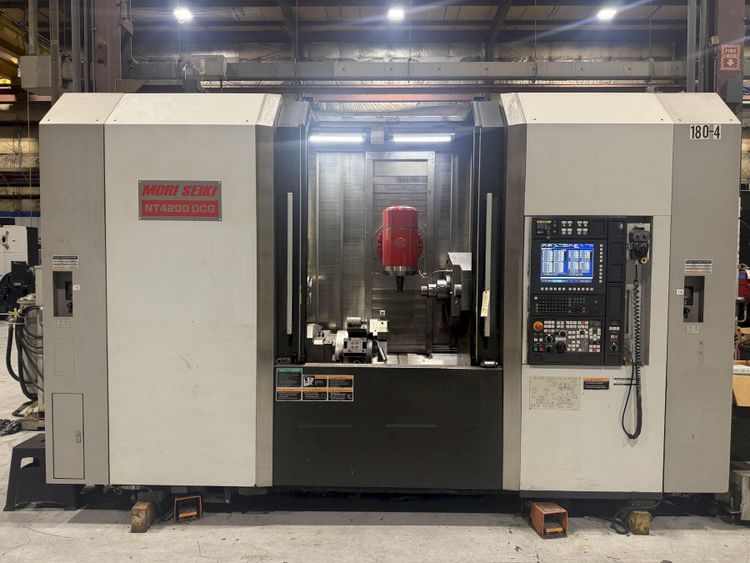

Mori Seiki NT4200/1000SZ 8 Axis

X Axis Travel: 29.5″
X2 Axis Travel: 7.7″
Y Axis Travel: 8.3″
Z Axis Travel: 44.1″
Z2 Axis Travel: 39.8″
B Axis Indexing: ±120°
C1/C2 Axis Index: 0.0001°
Fanuc CNC Control
MAPPS Conversational Programming
Coolant Thru Spindle
High Pressure Coolant
Chip Conveyor
Coolant Tank & Pump
Probing
Swing: 28.7″
Turning Diameter: 25.9″
Turning Diameter Lower Turret: 13.7″
Bar Capacity: 2.5″
Spindle Speed: 5,000 RPM
Main Spindle Motor: 30 HP
Spindle Nose: A2-6
Sub Spindle
Sub Spindle Speed: 5,000 RPM
Sub Spindle Motor: 30 HP
Sub Spindle Bar Capacity: 2.5″
Sub Spindle Nose: A2-6
Milling Spindle Taper: Capto C6
Live Tooling Speed: 12,000 RPM
Live Tooling Motor: 25 HP
8″ Chuck
Collet Chuck
Lower Turret Capacity: 12 Stations
ATC Capacity: 100 Stations
Hydraulic Steady Rest
Machine Weight: 49,700 lbs
Machine Dimensions: 116″ x 232″ x 116″
