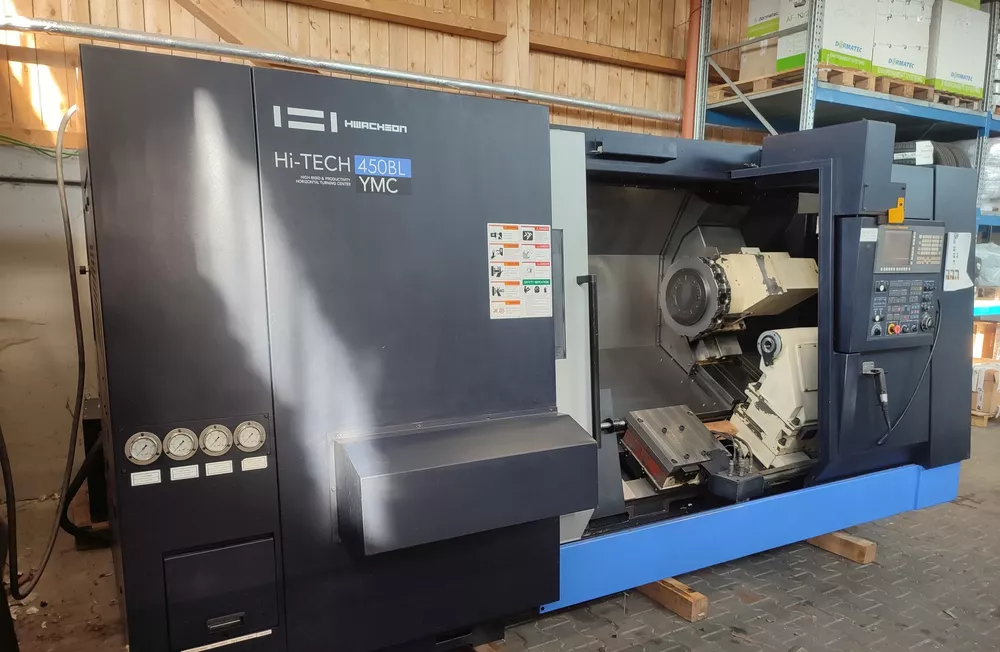

Hwacheon CNC CONTROL 2,500 rpm HI-TECH 450 BL YMC 2 Axis

Max. Turning Length 1,214 mm
Max. Turning Diameter 420 mm
Chuck Size 305 mm
Max. Turning Diameter Over Bed 700 mm
X-Axis Travel 280 mm
Y-Axis Travel 120 mm
Z-Axis Travel 1,390 mm
Rapid Traverse X/Y/Z 20 / 10 / 24 m/min
Bar Capacity 89 mm
Spindle Max. Speed 2,500 rpm
Spindle Drive Power 22 / 18.5 kW
Spindle Torque 1,050 / 883.8 Nm
Turret Tool Positions 12
Turret Tool Positions for Driven Tools 12
Turret Tool Holder BMT-65
Flat Guides
C-Axis
Y-Axis
Blow Gun
Steady Rest Holder
Manual Steady Rest, Manufacturer RICHTER
Chip Conveyor
Automatic Tailstock and Quill
Work Light
Coolant Tank Capacity 240 liters
Connected Load 55 kVA
Weight Approx. 7,800 kg
