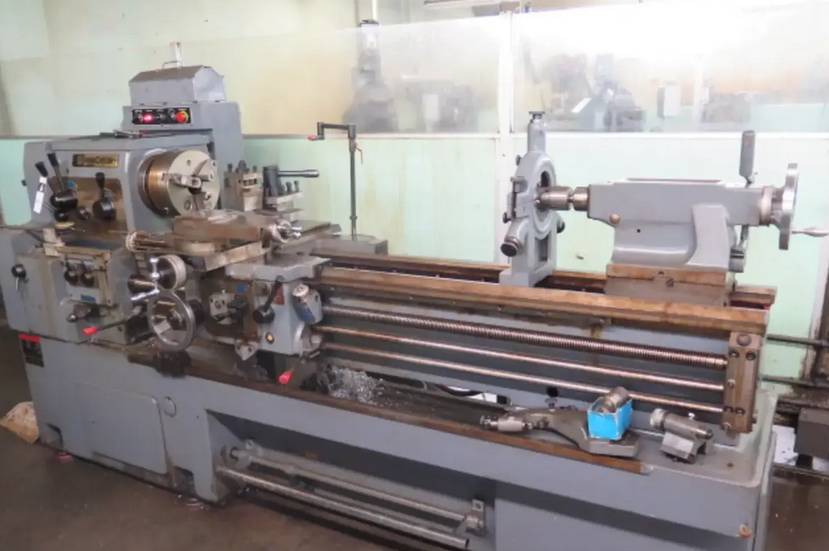

Hwacheon Engine Lathe 1800 rpm HL-18

Spindle speeds 32–1800 rpm
Number of spindle speeds 12
Number of feed changes 40
Swing over bed 18 in
Swing over cross slide 11 in
Swing over gap 25 in
Distance between centers 59 in
Spindle nose D1-6
Spindle bore 2-3/64 in
Spindle taper MT6
Center taper MT4
Cross slide travel 10 in
Gap width 7-7/8 in
Bed width 13-3/4 in
Inch threads 4–80 TPI
Metric threads 0.5–7 mm
Motor power approx. 7.5 hp
Machine weight approx. 5200 lbs
Machine dimensions 114 x 42 x 55 in
3 jaw chuck
Steady rest
Follow rest
4-way tool post
Bed stop
Selector switch on/off
Coolant pump with control
Emergency stop treadle
