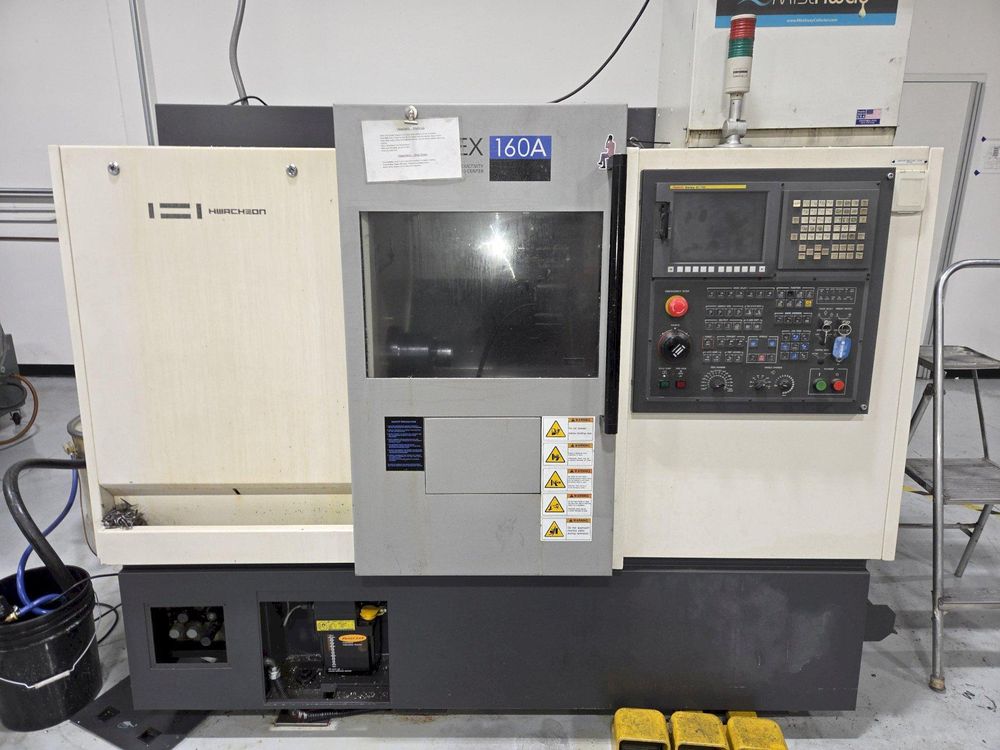

Hwacheon Fanuc 0i-TD Control 6000 rpm Cutex-160A 2 Axis

Max. rapid rate X/Z: 1417.32 ipm
CNC control: Fanuc 0i-TD Control
Swing over bed: 21.65 in
Max. bar size: 1.77 in
Max. cutting diameter: 11.81 in
Standard cutting diameter: 6.69 in
Max. cutting length: 11.81 in
Chuck size: 6 in
Spindle type: A2-5
Max spindle speed: 6000 rpm
Through spindle hole diameter: 2.20 in
Spindle motor: 15/10 hp
Tailstock taper: 4 mt
Turret tool stations: 12
Turret index time: 0.15 sec/step
Tailstock quill diameter: 2.36 in
Tailstock quill stroke: 3.15 in
Machine dimensions (L×W×H): 83.47 × 59.84 × 67.72 in
Weight: 7055 lb

16C collet nose
High-pressure coolant system
Coolant pump
