1/1

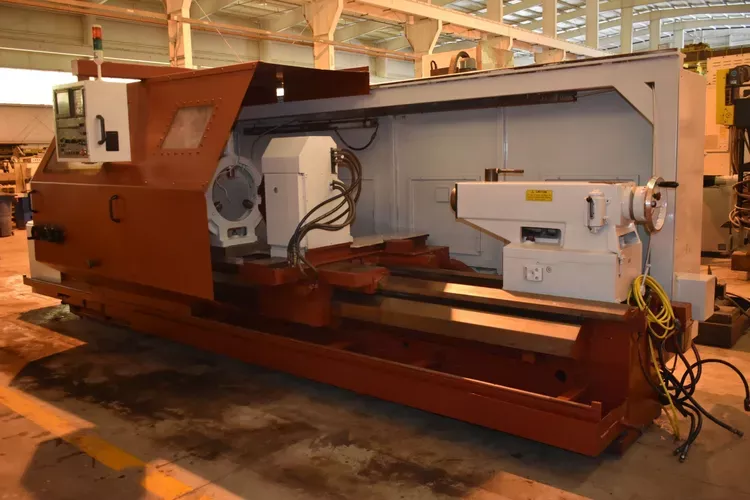

Hwacheon Fanuc 21-T CNC 1,000 rpm MEGA-95/3000
Ref :
2773504-3-CP
Condition :
Used
Manufacturer :
Hwacheon
Controller :
Fanuc 21-T CNC
Spindle Speed :
1,000 rpm
Model :
MEGA-95/3000
Nb Of Axis :
-
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
X-axis travel: 19.09 in
Z-axis travel: 118 in
Control: Fanuc 21-T CNC
Coolant system
Bar capacity: 6 in
Swing over bed: 38.5 in
Swing through gap: 48.4 in
Swing over cross slide: 26.2 in
Spindle speed range: 40–1,000 rpm
Spindle motor power: 30 hp
Spindle nose: A2-15
Chuck size: 24 in
Hydraulic turret: 12 positions
Rapid traverse rate: 236 ipm
Tailstock quill travel: 10.2 in
Tailstock
Overall dimensions: 236 in x 99 in
Overall height: 85 in
Machine weight: approx. 22,000 lb
Chip conveyor
