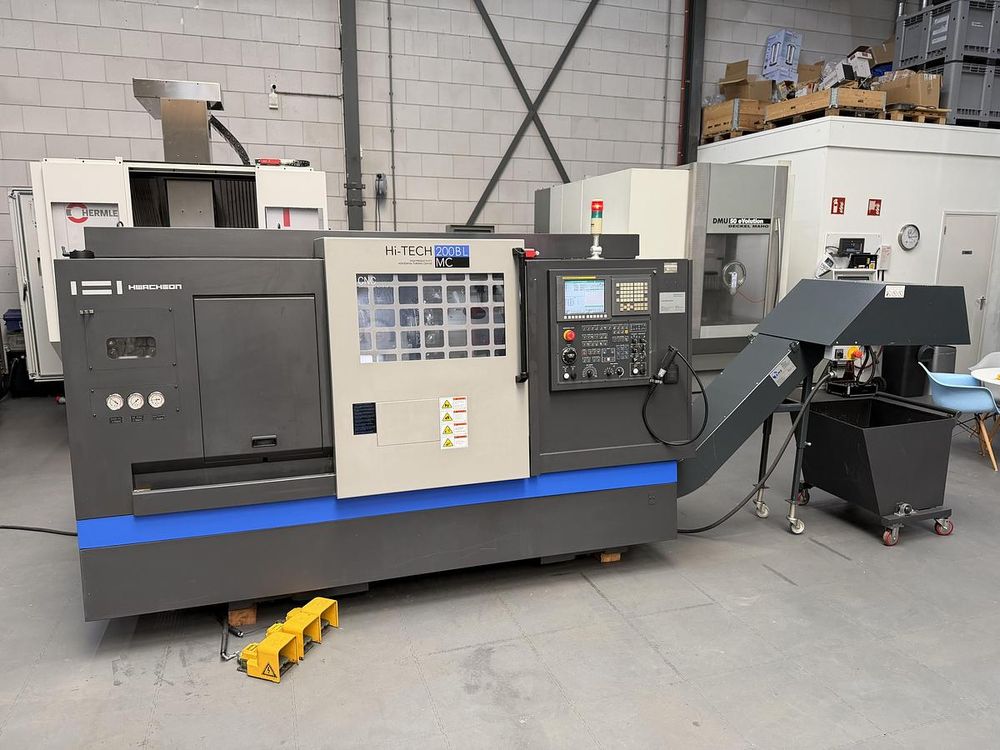

Hwacheon Fanuc Corporation Series 0i-TD CNC 3500 rpm Hi-TECH 200BL MC 3 Axis

X-axis travel: 195 mm
Z-axis travel: 430 mm
C-axis: 3.7/2.2, 5000 rpm, Ø16 mm, 0.001° indexing
Feedrate rapid traverse (X/Y/Z): 30 m/min
Control system: Fanuc Corporation Series 0i-TD CNC
Max turning diameter: 325 mm
Max turning diameter over cross slide: 500 mm
Max turning length: 532 mm
Through spindle bore: 65 mm
Spindle speed: 0 – 3500 rpm
Spindle motor power: 11 kW (100% ED) / 15 kW (40% ED)
Spindle nose: A2-8
Turret tool shank: 25 × 25 mm / Ø40 mm
Turret positions: 12 (all driven)
Tailstock taper: MK4
Chuck type: Röhm DURO-NC 260/3 3-jaw chuck 260 mm
Tooling system: EWS tool holders (13 pcs, 4 driven)
Renishaw probing system: Included
Chip conveyor: Included
Spindle hours: 4624
Machine condition: Used
