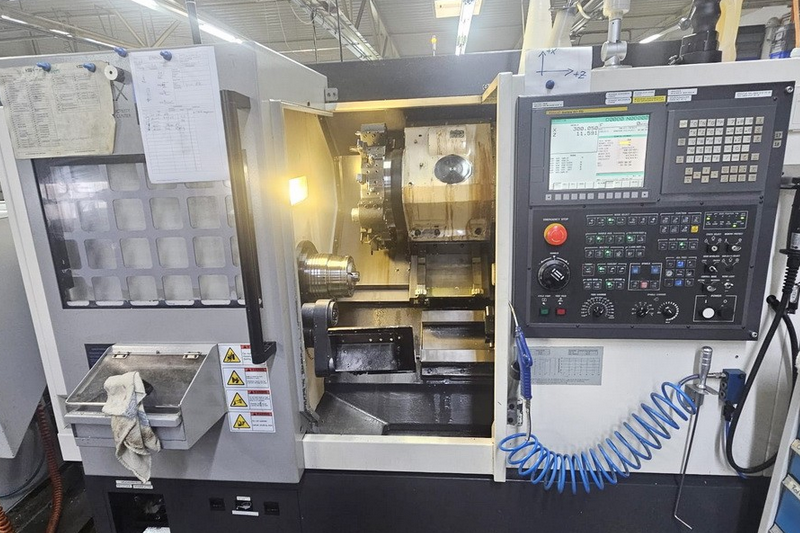

Hwacheon Fanuc Oi-TD 4,500 RPM Cutex 160 B 2 Axis

Hwacheon Cutex 160 B
Year: 2013

Control: Fanuc Oi-TD
Max Turning Diameter: 300 mm
Max Turning Length: 284 mm
Turning Diameter Over Bed: 550 mm
Chucking Diameter: 210 mm
Spindle Nose: A2-6

Main Spindle:
Max Spindle Speed: 4,500 RPM
Spindle Bore: 62 mm
Bar Capacity: 51 mm
Spindle Bearing Diameter: 100 mm
Power: 11 / 7.5 kW

Axis Travel:
X-Axis: 170 mm
Z-Axis: 335 mm

Turret:
Tool Stations: 12
Tool Size: Ø25 x Ø40 mm

Rapid Traverse:
X / Z Axis: 36 / 36 m/min

Tailstock:
Quill Diameter: 60 mm
Quill Stroke: 80 mm
Taper: MT 4

General:
Power Requirement: 25 kVA
Machine Weight: approx. 3.2 t
Machine Dimensions: approx. 8.5 x 2.5 x 2.0 m

Operating Hours:
Control On: approx. 26,932 h
Processing Time: approx. 7,546 h

Equipped With:
Breuning SIMAG 70.1-3000 Bar Feeder
Bar Feeder Interface
Chip Conveyor
Collet Chuck HAINBUCH Nova Gr. 65
Coolant System
Documentation
Hydraulic System
Signal Light
Tailstock
Three Jaw Chuck SEOAM CAH-08
Various Tool Holders
Tool Setter
