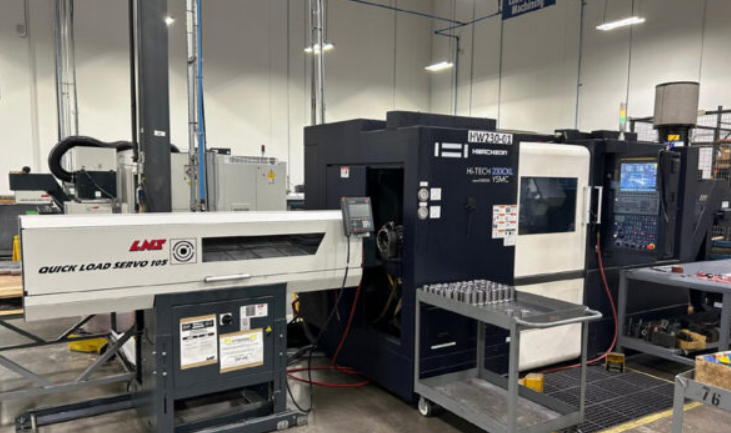

Hwacheon Hwacheon Fanuc i Series-Plus 3,500 RPM HI-TECH 230CXL-YSMC 2 Axis

Maximum Cutting Diameter: 15.75"
Standard Cutting Diameter: 10.91"
Maximum Cutting Length: 41.73"
Control: Hwacheon Fanuc i Series-Plus
Y-Axis
Swing Over Bed: 29.53"
Swing Over Saddle: 21.26"
Bar Capacity: 3.19"
Sub Spindle Bar Capacity: 2.0"
Spindle Speed: 3,500 RPM
Spindle Nose: A2-8
Spindle Bore: 3.58"
Sub Spindle Speed: 5,000 RPM
Sub Spindle Nose: A2-5
Sub Spindle Bore: 2.44"
10" Hydraulic Chuck
6" Hydraulic Chuck

Tool Presetter
Sub Spindle
Live Milling
Chip Conveyor
LNS Quick Load Servo 105 Bar Feeder
LNS Chip Blaster 1,000 PSI
Royal Mist Collector
