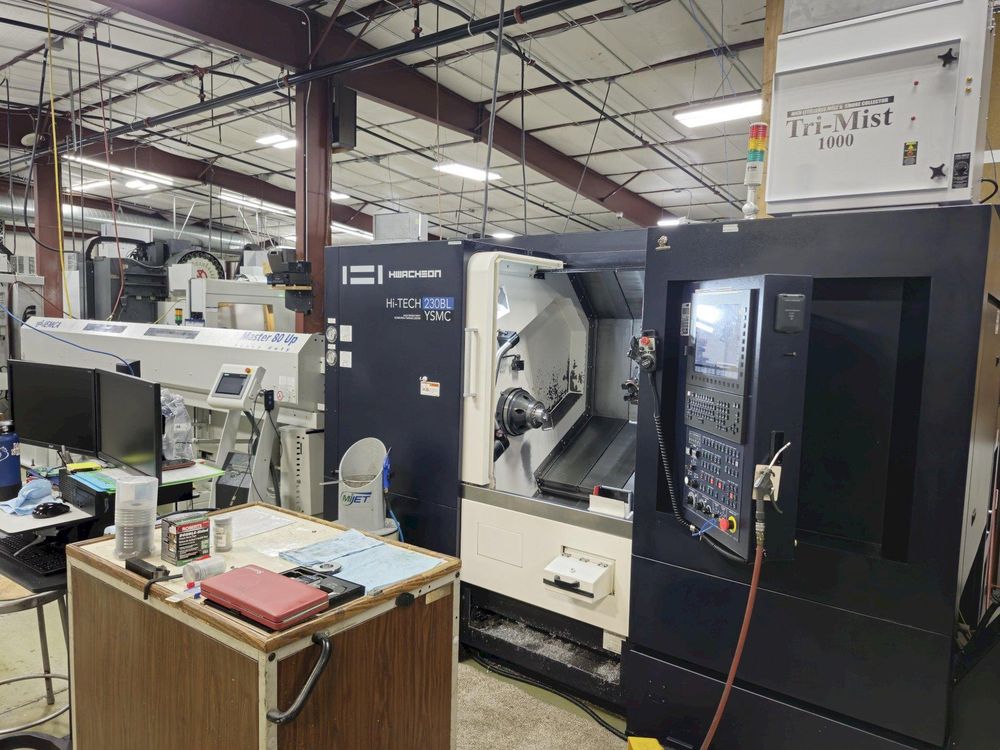

Hwacheon Hwacheon Fanuc Oi-TF Plus 3500 RPM HI-TECH 230BL-YSMC 3 Axis

X-axis travel: 9.4"
Y-axis travel: 4.72"
Z-axis travel: 47.24"
Spindle speed range: 3500 RPM
Spindle nose: A2-8
Max. swing over bed: 29.52"
Max. turning diameter: 15.74"
Max. turning length: 41.73"
Spindle bore: 3.58"
Max bar capacity: 3.1"
Number of axes: 4
CNC control: Hwacheon Fanuc Oi-TF Plus
Spindle horsepower: 24.8 HP
Sub-spindle speed range: 5000 RPM
Sub-spindle horsepower: 14.75 HP
Chuck size: 10"
Number of positions on turret: 12
Live tooling: yes
Live tooling horsepower: 7.3 HP
Machine dimensions: L 147.75 x W 75.74 x H 82.83
Machine weight: 18,370 lbs
Bar feeder interface
IEMCA Master 80 UP magazine bar feeder, New 2018
Chuck pressure check switch
Coolant level sensor
Digital tailstock
Double I.D. holder (for 24 positions)
Double O.D. holder (for 24 positions)
High pressure pump, 6 bar
6" sub chuck
12 station turret with turn mill
Axial tooling
Radial tooling
Chip conveyor
Load detection system (L-HTLD)
Parts catcher
Rigid tapping
Signal lamp
Tool presetter
Tool kit and box
Manuals – operation, parts, etc.
