Hwacheon Hwacheon Fanuc Oi-TF Plus 6000 RPM CUTEX-180AL YSMC 2 Axis

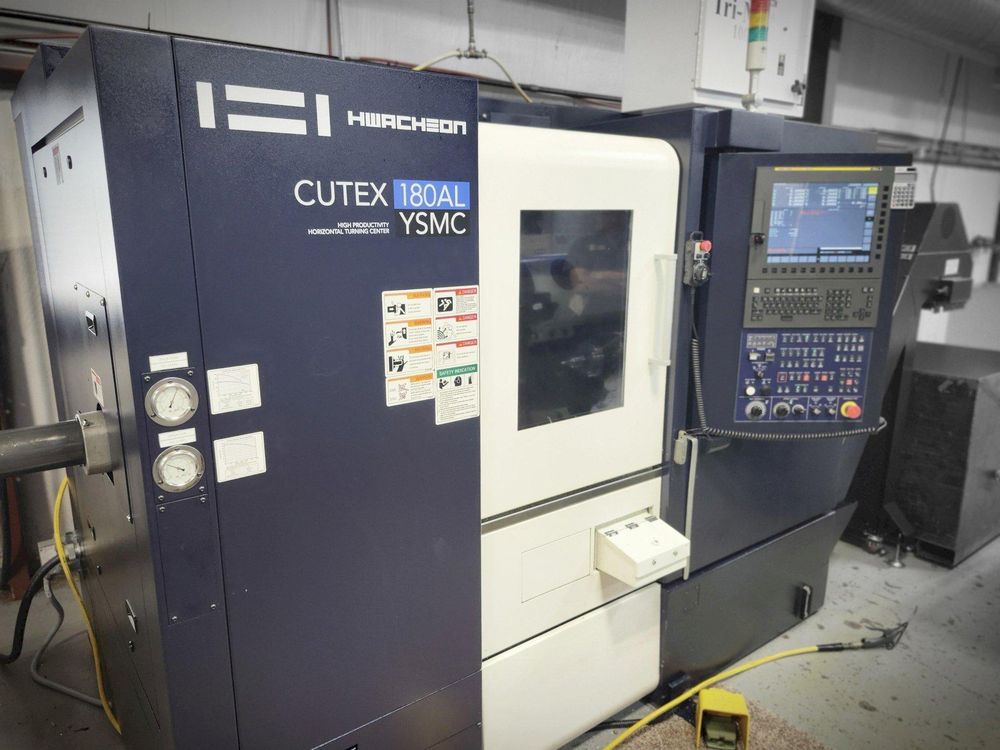

HWACHEON CUTEX-180AL YSMC

X-axis travel: 8.66"
Y-axis travel: 2.16"
Z-axis travel: 22.83"
Spindle speed range: 6000 RPM
Spindle nose: A2-5
Max. swing over bed: 27.55"
Max. turning diameter: 11.81"
Max. turning length: 18.83"
Spindle bore: 2.44"
Max bar capacity: 2.0"
Number of axes: 4
Number of spindles: 2
CNC control: Hwacheon Fanuc Oi-TF Plus
Spindle horsepower: 20 HP
Sub-spindle speed range: 5000 RPM
Sub-spindle horsepower: 7.3 HP
Chuck size: 6"
Number of positions on turret: 12
Live tooling: yes
Live tooling horsepower: 7.3 HP
Machine dimensions: L 98.42 x W 66.92 x H 78.54
Machine weight: 10,340 lbs
Bar feeder interface
IEMCA BOSS 552/37-HD bar feeder
Chuck pressure check switch
Coolant level sensor
Digital tailstock
Double I.D. holder (for 24 positions)
Double O.D. holder (for 24 positions)
High pressure pump, 6 bar
6" sub chuck
12 station turret with turn mill
Axial tooling
Radial tooling
Chip conveyor
Load detection system (L-HTLD)
Parts catcher
Rigid tapping
Signal lamp
Tool presetter
Tool kit and box
Manuals – operation, parts, etc.
