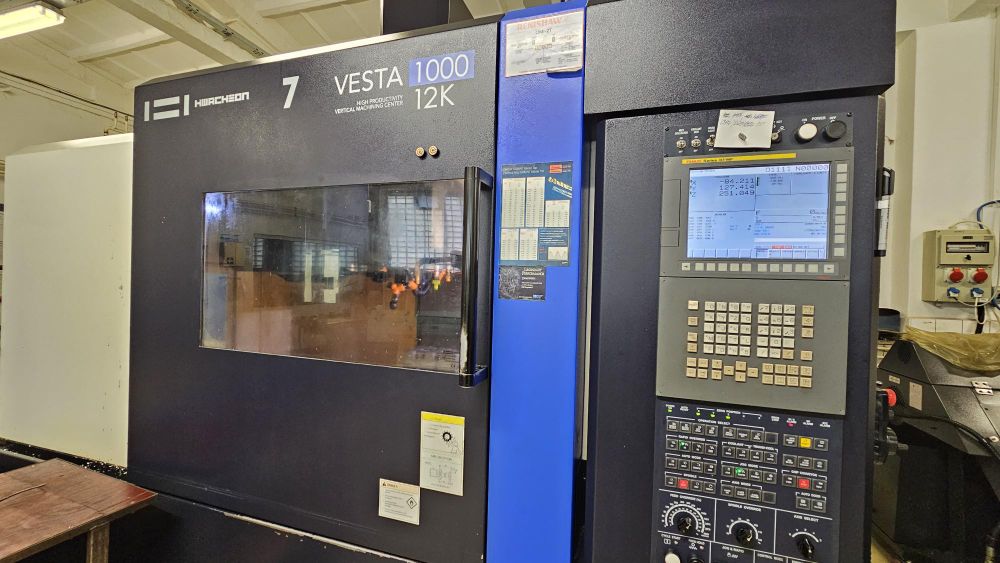

Hwacheon VESTA-1000/12K 4 Axis

X-axis travel: 1,000 mm
Y-axis travel: 550 mm
Z-axis travel: 500 mm
Distance table to spindle nose: 130–630 mm

4th axis Tsudakoma
4th axis fully integrated via M-codes

CNC control Fanuc 0i-MD
Manual Guide i
Wireless workpiece probe
Wireless tool probe
Ethernet interface
Electronic handwheel
Rigid tapping
Machine status signal light (3-color)

Table size: 1,100 x 502 mm
Table load capacity: 700 kg
T-slots: 5
T-slot width: 18 mm
T-slot spacing: 80 mm

Spindle speed: 12,000 rpm
Spindle motor power (10 min): 18.5 kW
Spindle motor power (continuous): 11 kW
Spindle taper: BT40
Pull stud type: MAS P40T-1 (45°)
Spindle air blow
Spindle jacket cooling

Rapid traverse X/Y/Z: 36 / 36 / 30 m/min
Feed rate X/Y/Z: 1–24,000 mm/min

Tool magazine capacity: 24 tools
Maximum tool diameter: 80 mm
Maximum tool diameter without adjacent tool: 150 mm
Maximum tool length: 300 mm
Maximum tool weight: 8 kg
Tool change time tool-to-tool: 2.5 s
Tool change time chip-to-chip: 4.3 s
Tool magazine type: Disc with swing arm

Coolant through spindle: 30 bar
Coolant tank capacity: 380 l
Lubrication tank capacity: 6 l
Spindle cooling tank capacity: 20 l
Chip conveyor (screw type)
Coolant system
Automatic lubrication system
Oil collection tank

Power consumption: 30 kVA

Machine height: 2,670 mm
Floor space: 3,335 x 2,200 mm
Machine weight: 6,500 kg
