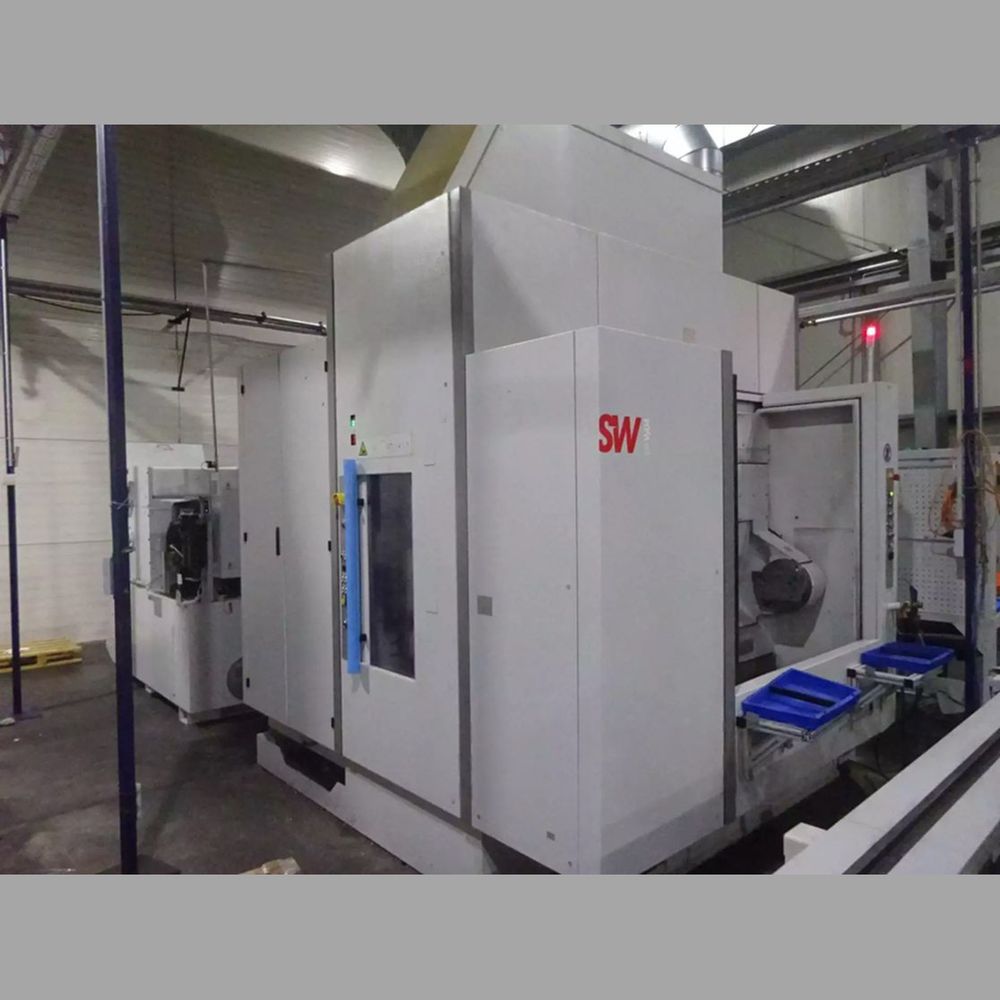

SW (Schwäbische Werkzeugmaschinen) BA W04-22 4 Axis

X-axis travel: 400 mm
Y-axis travel: 500 mm
Y-axis extended travel: 775 mm
Z-axis travel: 425 mm
Rapid traverse X/Y/Z: 100 / 100 / 100 m/min
Axis acceleration X/Y/Z: 13 / 12 / 23 m/s²
Feed force X/Y/Z: 10,000 / 10,000 / 2×5,000 N

4-axis configuration
Preparation for NC-controlled rotary table (5th axis)
NC-controlled swivel units for clamping bridge

CNC control: Siemens 840D Solutionline
Linear glass scales X/Y/Z/A/U/C1/C2/W1/W2
Linear motor drives
Two separate Z-axes
IR measuring probe
Tool breakage control
Tool life monitoring
Rigid tapping
Remote diagnostics modem
Fully enclosed work area
Automatic sliding door
Work area lighting
Warning lamp

Tool taper: HSK-A63
Milling spindle speed: 17,500 rpm
Spindle power (10–40% duty): 35 kW
Spindle power (100% duty): 26 kW
Spindle torque (10–40% duty): 80 Nm
Spindle torque (100% duty): 60 Nm
Spindle front bearing diameter: 80 mm
Horizontal milling spindles: 2
Spindle distance: 400 mm
Air-monitored tool clamping

Chain-type tool magazine: 2 × 60 stations
Maximum tool diameter: 80 mm
Maximum tool diameter without adjacent tools: 160 mm
Maximum tool length: 300 mm
Chip-to-chip time: 2.25 s

Pallet changer: 2-position
Maximum workpiece weight per pallet: 450 kg
Maximum workpiece weight: 10 kg
Bridge dimension: 1,030 mm
Workpiece swing diameter: 550 mm
Hydraulic clamping
Additional clamping circuits: 4
Air-monitored workpiece clamping

Internal coolant supply
High-pressure coolant pump: 70 bar
Coolant unit with paper band filter
Emulsion operation
Oil/emulsion mist extraction
Scraper-type chip conveyor

Air supply: 6 bar
Operating voltage: 3×400 V / 50 Hz
Total power requirement: 133 kVA
Machine dimensions (L×W×H): 3,230 × 5,100 × 3,050 mm
Space requirement (L×W×H): 4,350 × 7,000 × 3,100 mm
Machine weight: 14,500 kg
