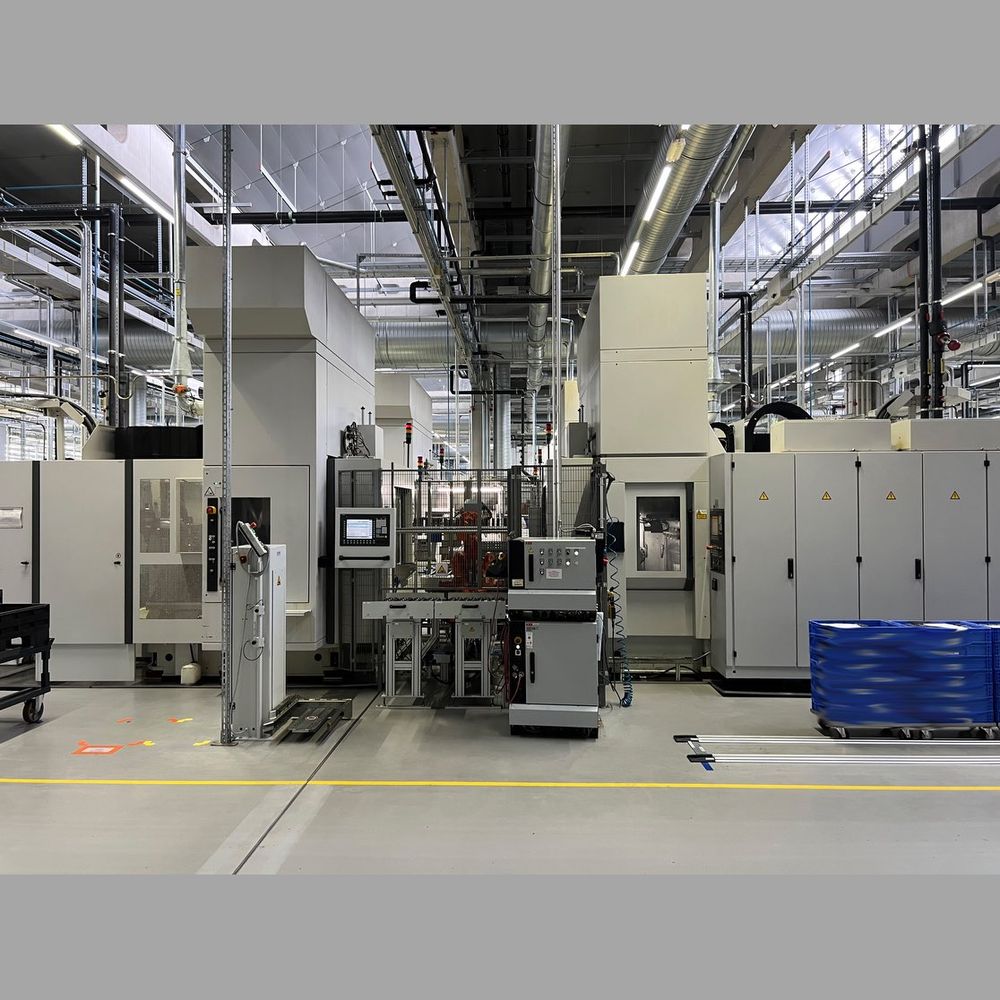

SW (Schwäbische Werkzeugmaschinen) BA 400-4 5 Axis

X travel 200 mm
Y travel 400 (700) mm
Z travel 400 mm
Max rapid traverse X/Y/Z 40/40/40 m/min
Max acceleration X/Y/Z 3/3/5 m/s²
Feed force X/Y/Z 11000/11000/11000 N
C axis NC rotary table
B axis NC swivel
Control Siemens 840 D
Spindle speed 17500 1/min
Spindle power 16/12 kW
Spindle torque 50/38 Nm
Spindle taper HSK 63
Spindle diameter in front bearing 65 mm
Horizontal milling spindles 4 pcs
Spindle distance 200 mm
Tool magazine 4×48 stations
Max tool diameter 70 mm
Max tool diameter without adjacent tools 125 mm
Max tool length 275 mm
Max workpiece weight 6 kg
Chip-to-chip time 5 s
Pallet changer 2-fold
Tool breakage control by laser
Tool breakage monitoring by ARTIS
Fully enclosed work area
Automatic working range sliding door
Light in working area
Preparation for oil/emulsion mist extraction unit
Chip conveyor
Internal coolant supply
Coolant unit with paper band filter
High pressure pump
Interface for gantry loader or robot
Total power requirement 100 kVA
Machine dimensions 4700×3400×3300 mm
Space requirement of whole equipment 6350×4500×4000 mm
Machine weight 14800 kg
