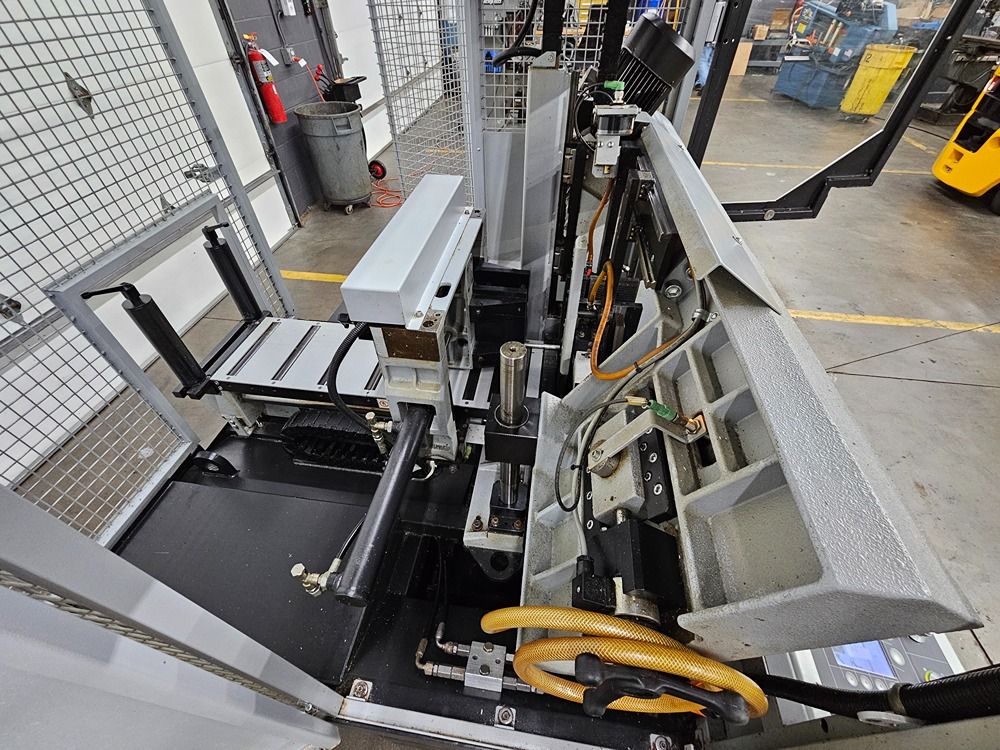

Hyd-Mech H-230A Horizontal Bandsaw CNC CONTROL

Cutting capacity rectangular 9″ x 9″
Cutting capacity round 9″
Blade size 9′ 8″ x 1″
Blade speed 50 – 350 SFM
Automatic multi-indexing 0 – 19″
Remnant length 2 1/2″ (6″ with bundling)
Table height 35″
Motor 3 HP / 240V, 480V / 3ph
Heavy-duty cast iron saw head
Split front vise
Cast iron shuttle with automatic multi-indexing and kerf compensation
On-demand hydraulics
Steel guide arms with mechanical connection to front vise jaw
Variable vise pressure
3 HP VFD direct blade drive
Full capacity, full stroking hydraulic vises
Hydraulic positive down feed
Blade chamber separates material from cut part
Cast iron band wheels
Automatic PLC touch screen control, programmable up to 20 jobs with 5 in queue
Replaceable blade brush
Robust steel base
Automatic chip removal auger
Blade breakage switch
Easy access electrical panel and hydraulics
Safety door interlocks
Flood coolant with wash down hose
Vertical rollers
Laser light and work light
Mechanical band tensioning with digital readout
Replaceable carbide guide inserts
Dimensions 63″ x 61″ x 67″ H
Weight approx. 2,200 lbs.
Includes roller table, chip auger, 5′ roll conveyor, 2 new blades, manual
