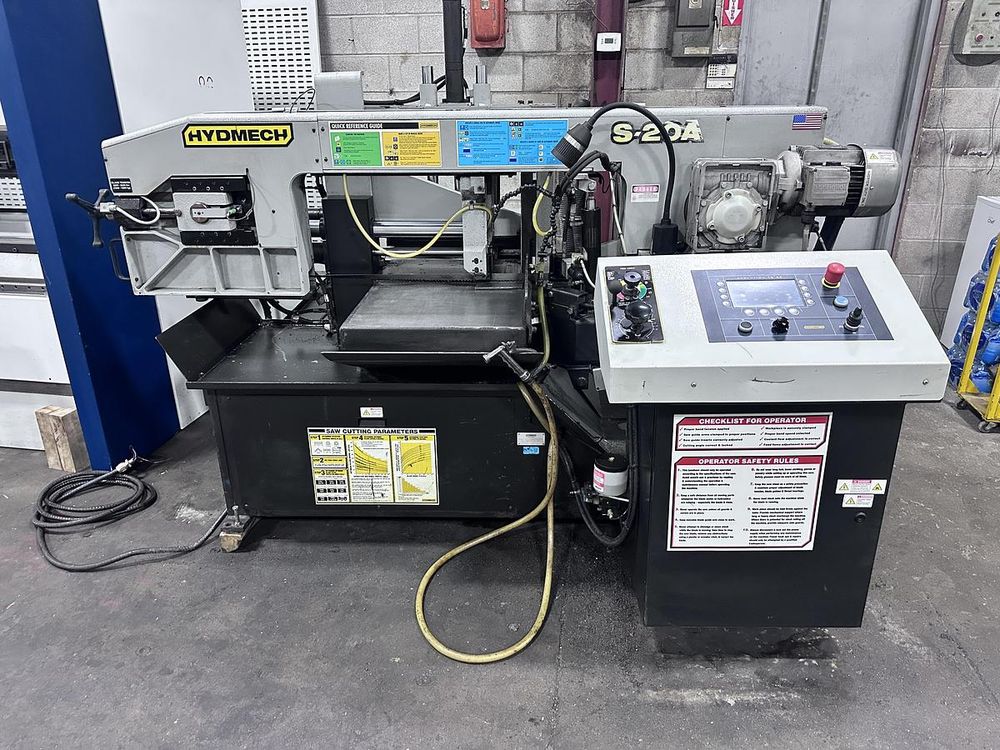

Hyd-Mech S20A Band Saw CNC CONTROL

Cutting capacity @ 90° 13" x 18"
Cutting capacity @ 45° 13" x 10-3/4"
Cutting capacity @ 30° 13" x 7-3/4"
Blade size 1" x 14' 10"
Blade speed 75 - 350 SFM
Machine voltage 575V/3/60
Blade drive 5 HP VFD
Coolant tank capacity 12 gallons
Work load 5,000 lbs
Approx. machine weight 3,800 lbs
Table height 31"
Automatic PLC, touchscreen control - programmable up to 100 jobs with 20 in queue
Hydraulic overhead bundling attachment
Mist lubrication system
Easy swing, heavy cast iron saw head that can swing up to 60° one direction
Cast iron shuttle features automatic multi-indexing up to 27" in a single stroke, powered by ball screw & stepper motor
Cast iron band wheels
Replaceable blade brush
Robust steel base
Full capacity, full stroke hydraulic material vises
Worklight
Safety door interlocks
Flood coolant with washdown hose
