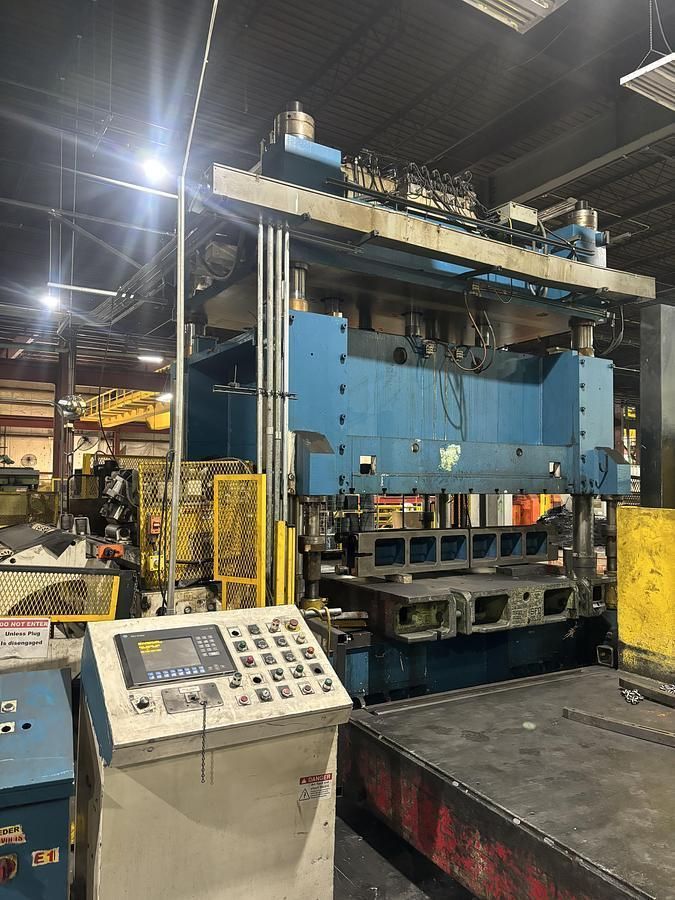

Hydraulic Press 96” x 144” 6-Cylinder Hydraulic Press 450 Ton

96" x 144" press bed size
12" stroke length
27" minimum shut height
83" wide x 131" long window opening
Approx. 18' overall height
36" base to floor dimension
452.43 tons compressive force at 3000 PSI
377.025 tons compressive force at 2500 PSI
231.09 tons lifting force at 3000 PSI
191.325 tons lifting force at 2500 PSI
120 GPM hydraulic flow rate at 3000 PSI max
ISO 68 oil type
310-gallon oil capacity
20-ton chiller capacity
2 x 10-ton chiller units
240,000 BTU/hr cooling capacity
460 VAC 3-phase 60 Hz 275 amps
115 VAC 1-phase 60 Hz for control panel
No pneumatic requirement
